Paint bucket mold Manufacturing & Design Custom

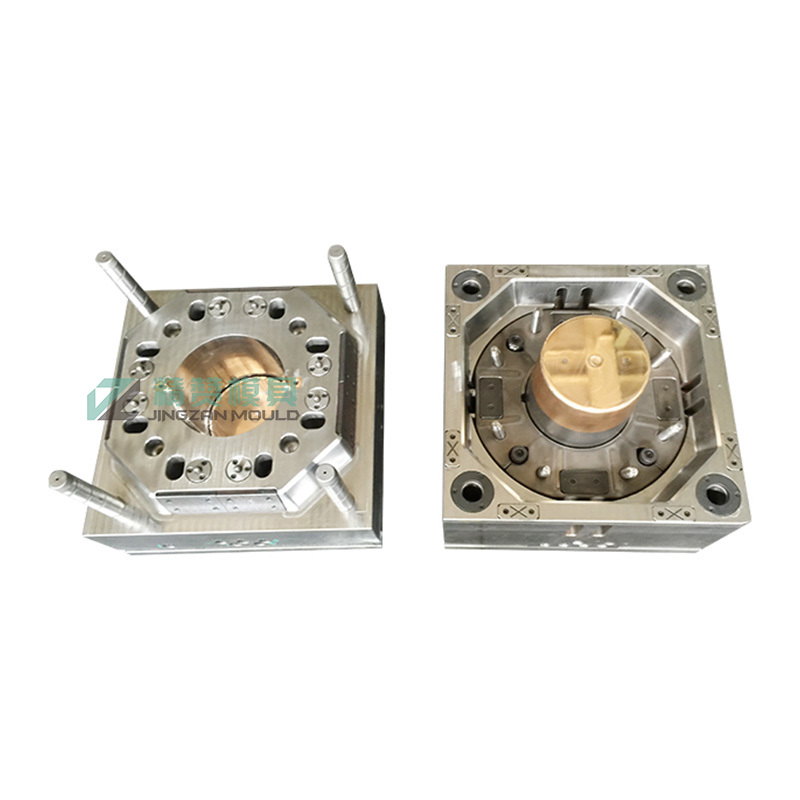

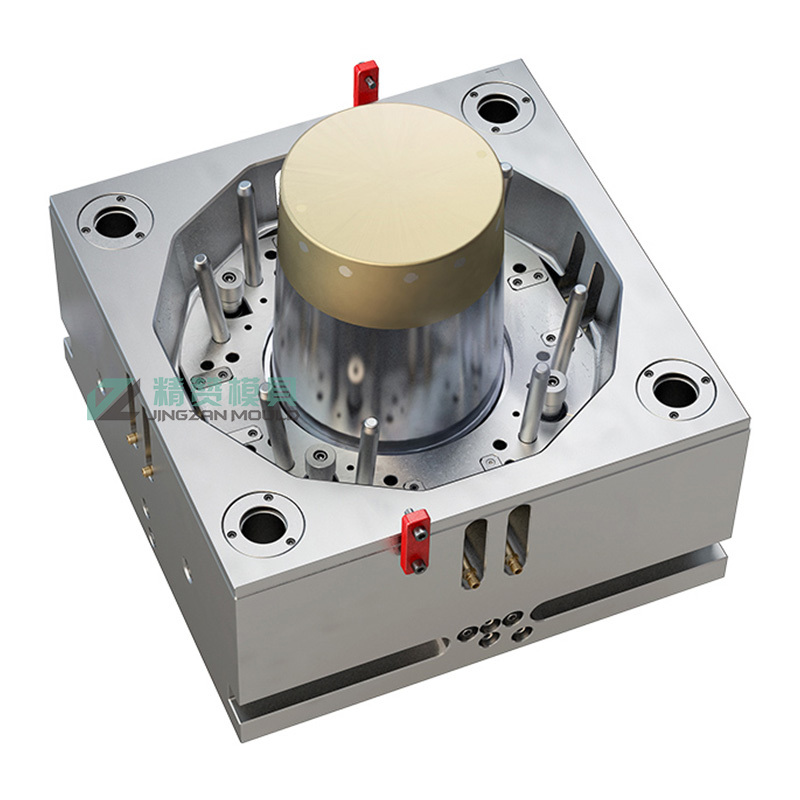

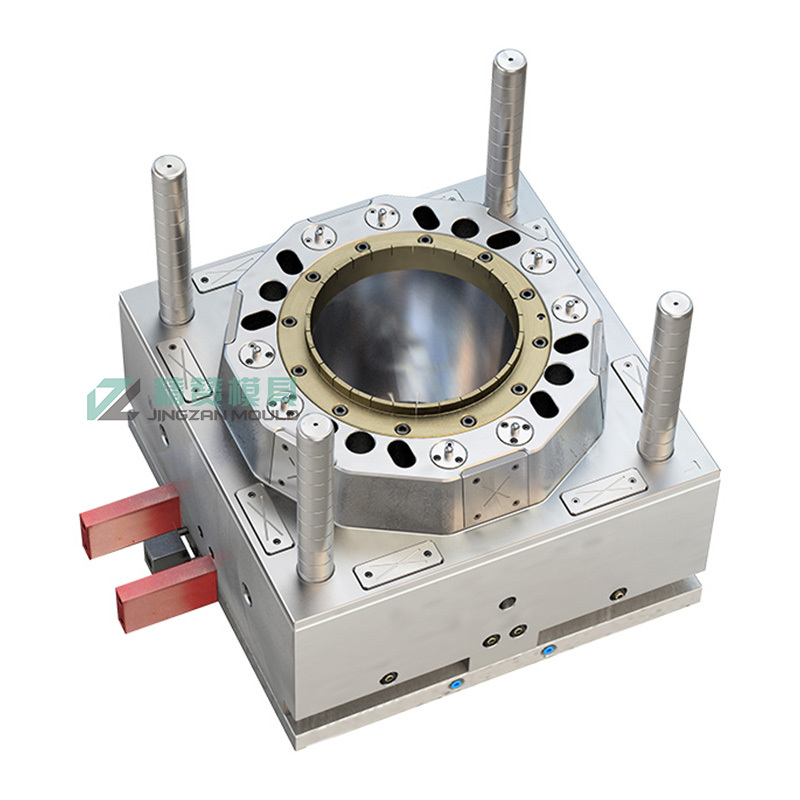

Paint bucket mold

Detailed Description

Our company provides a variety of barrel coating molds, ranging in volume from 500ml-20L, and the handle can be selected by the customer.

Pros: Stackable, Waterproof, Drop Tested, Uses Premium Steel, Efficient Cycle Times.
Our advantage is due to our expertise in this field, we provide customers with a wide range of barrel mold manufacturing and design. Moulds are usually manufactured using high-quality raw materials and cutting-edge technology, and are available in different designs, shapes and sizes according to customers' specific requirements.

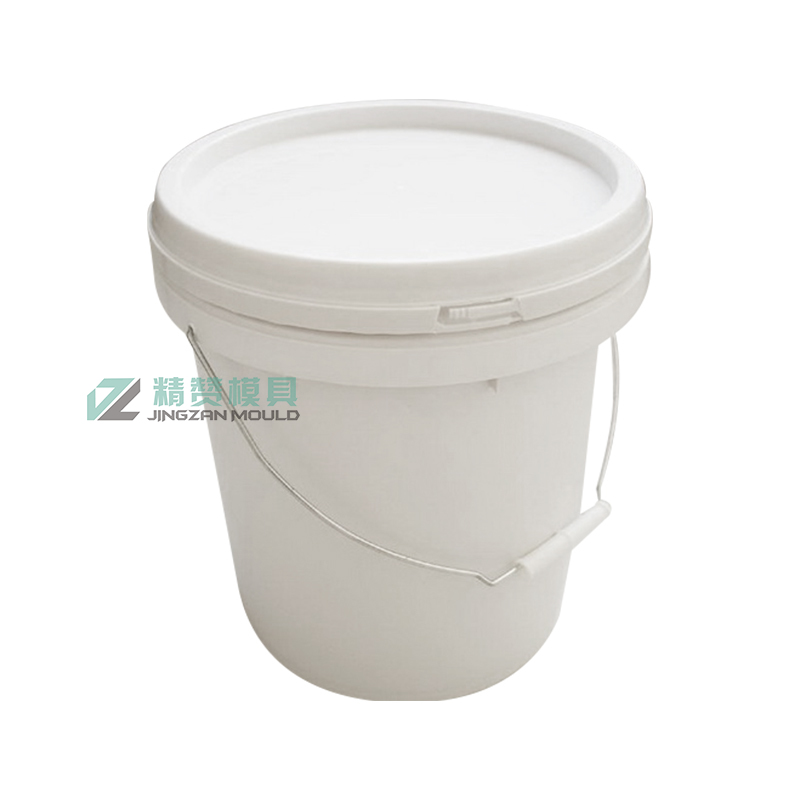

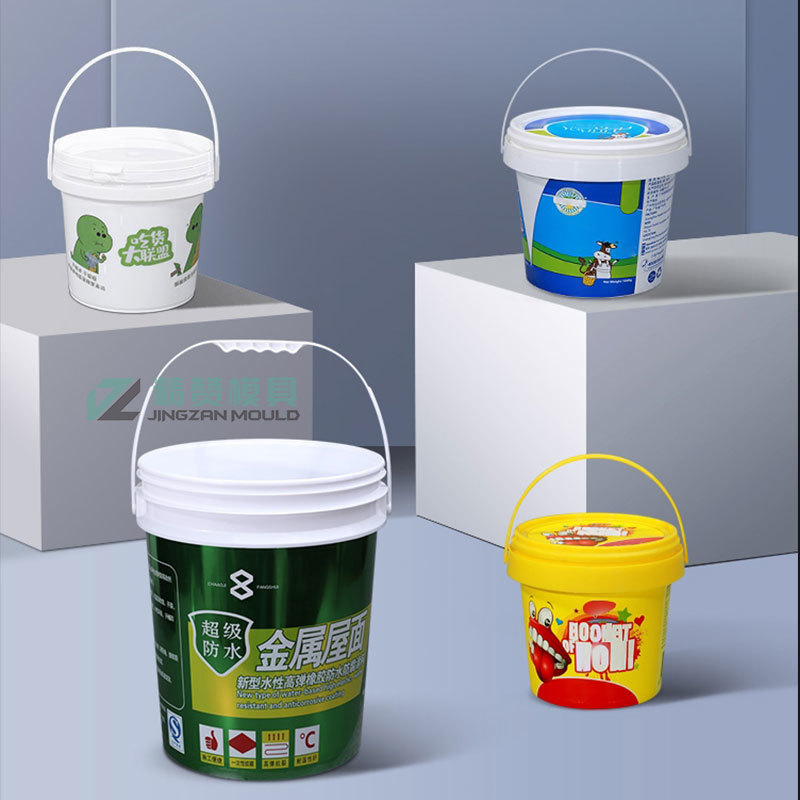

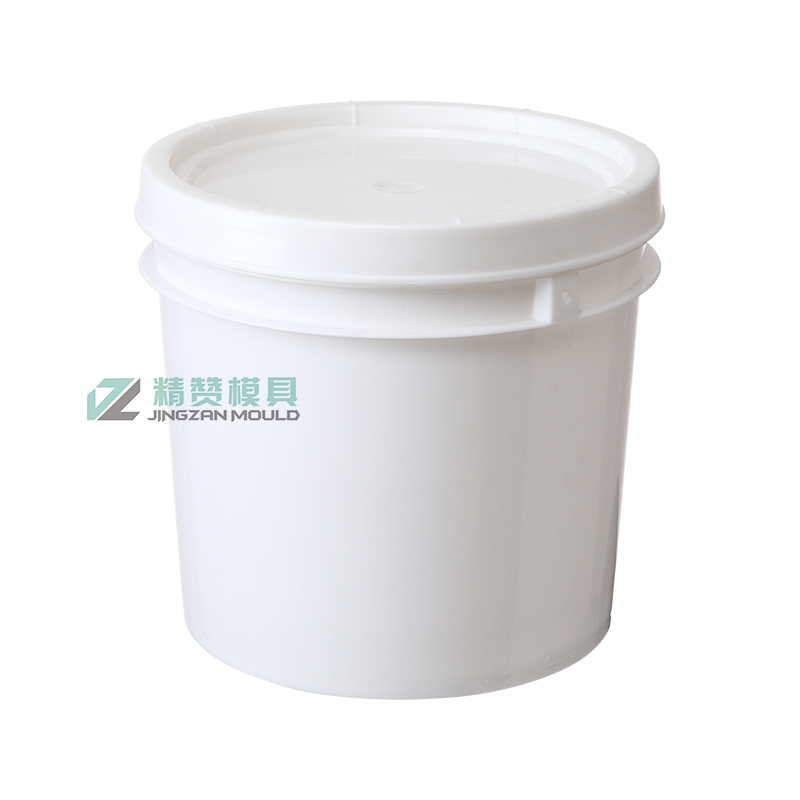

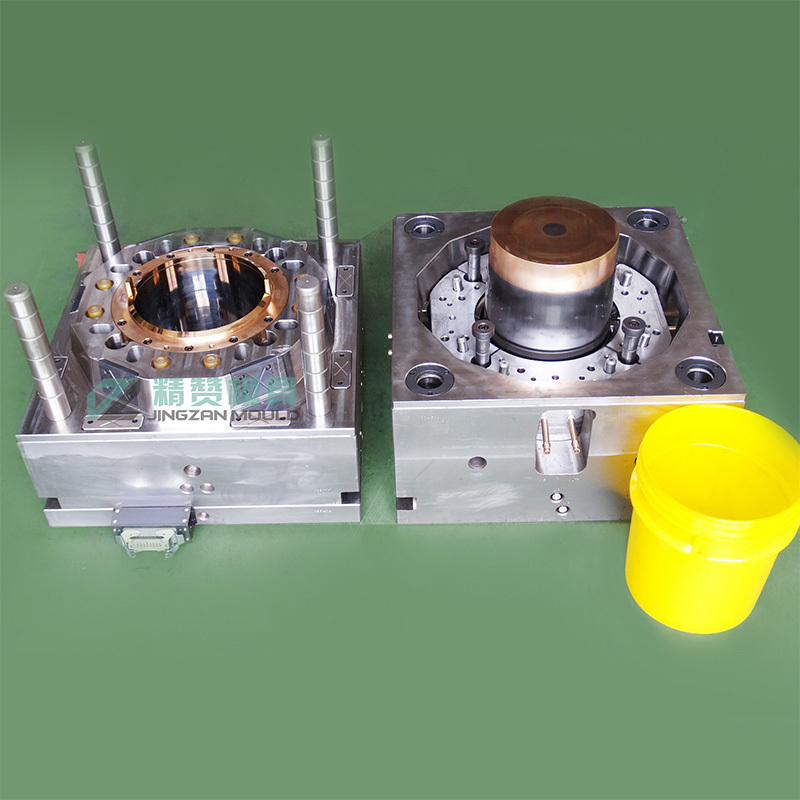

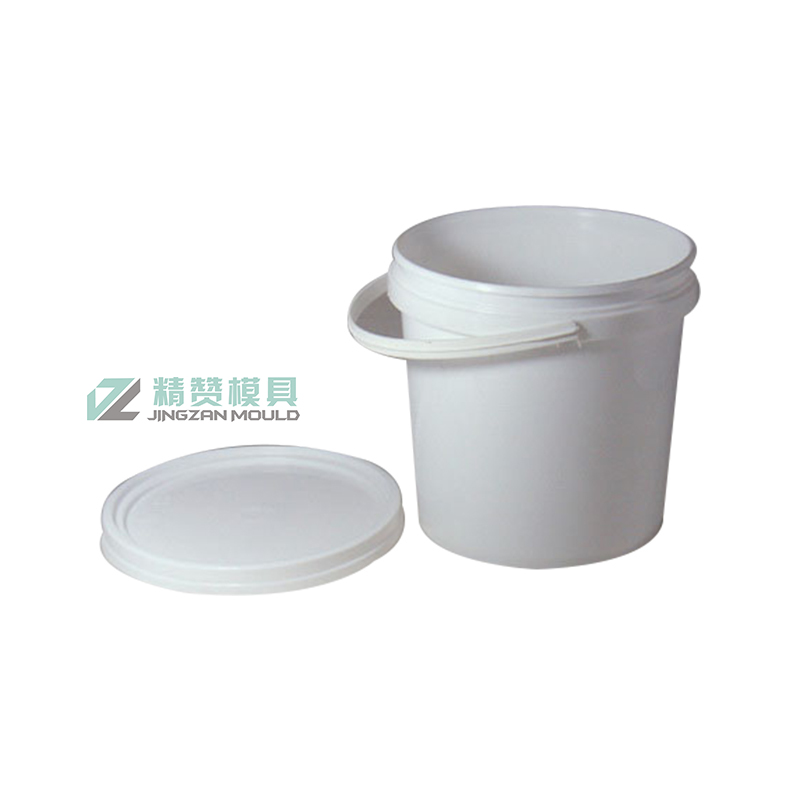

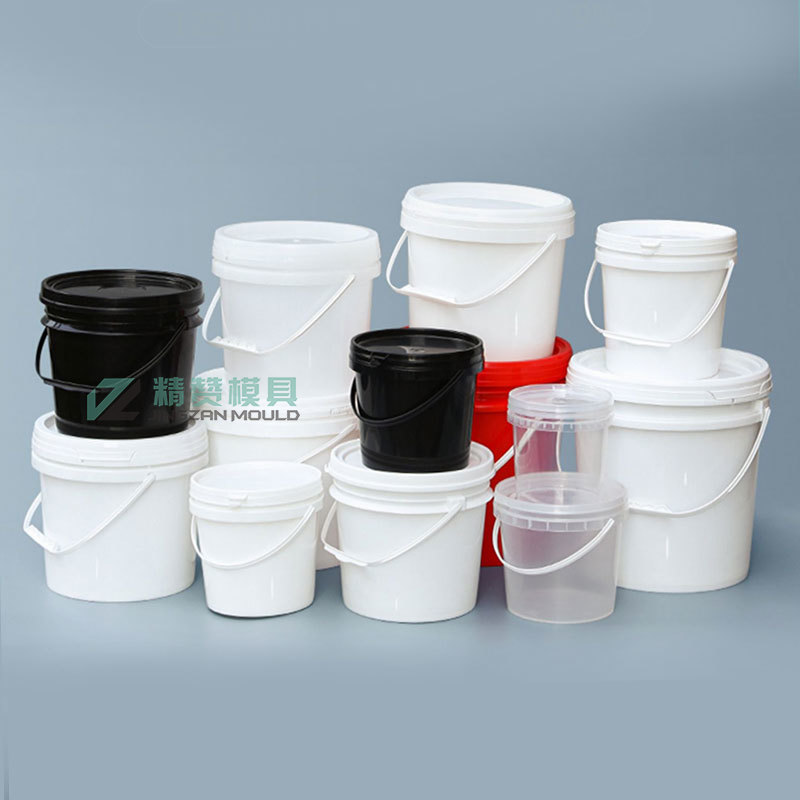

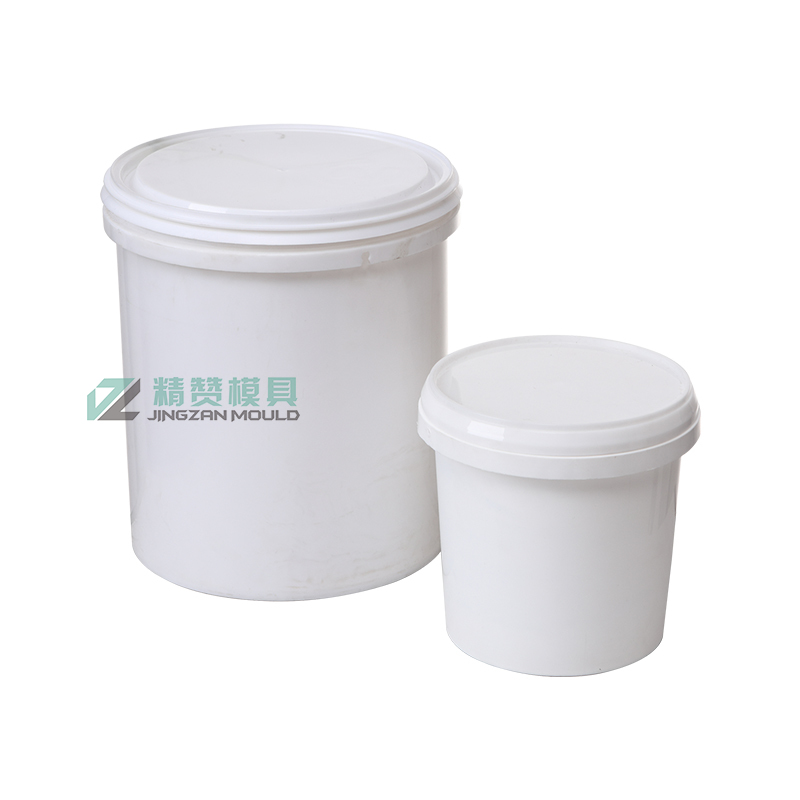

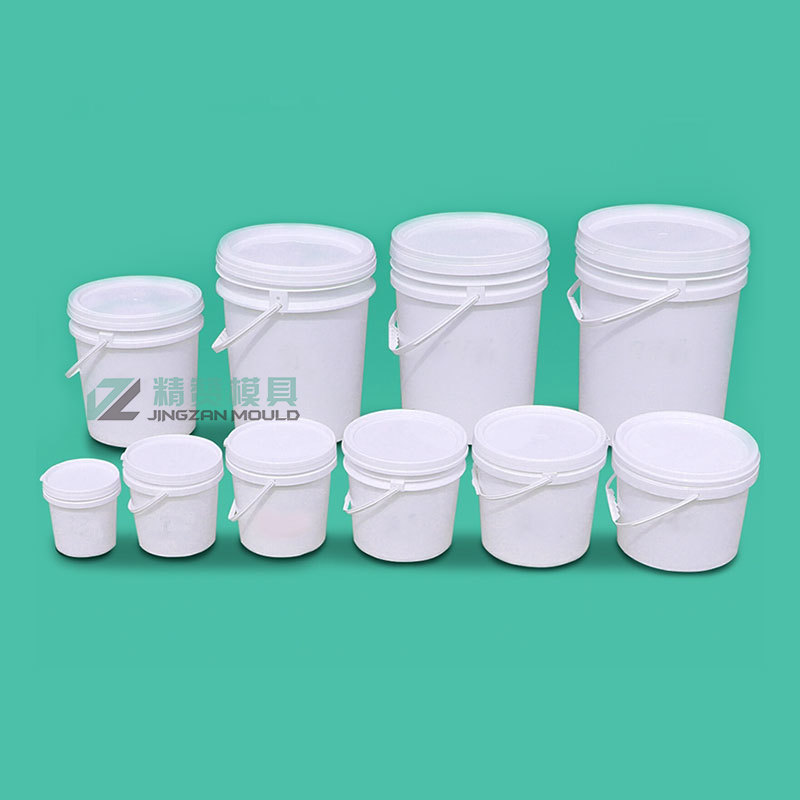

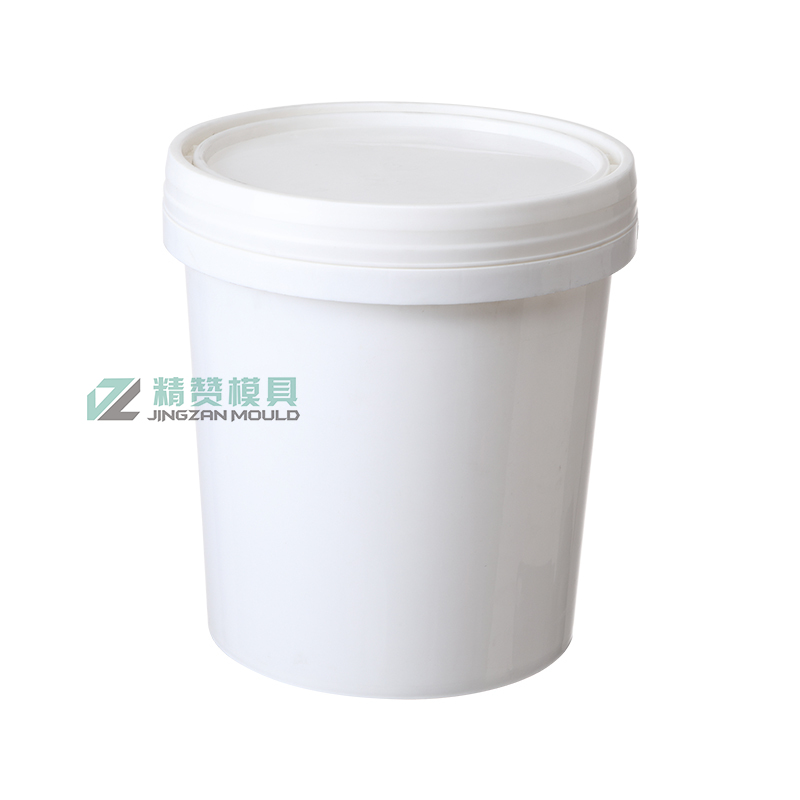

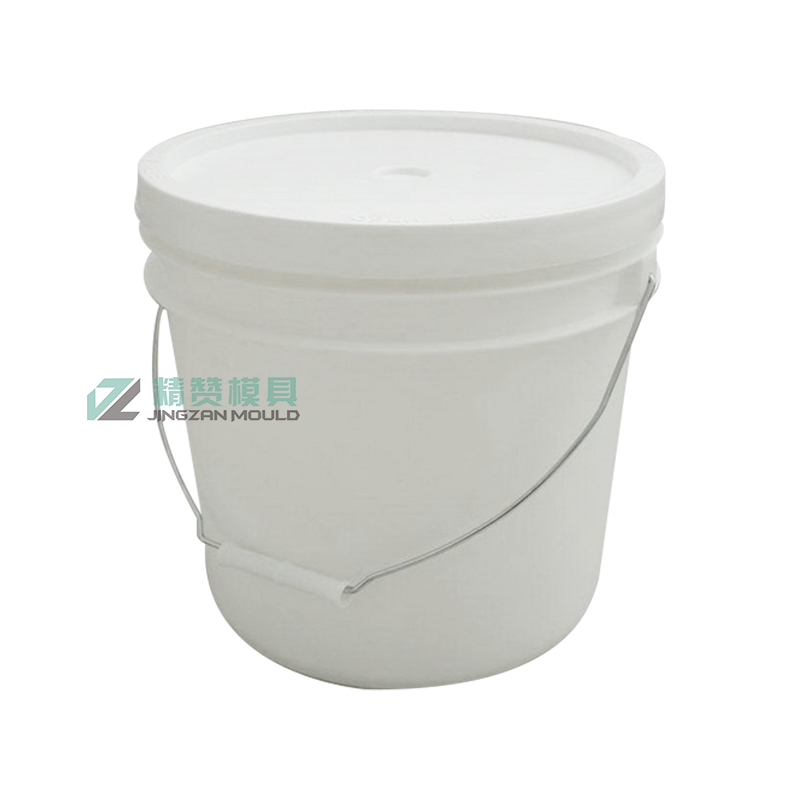

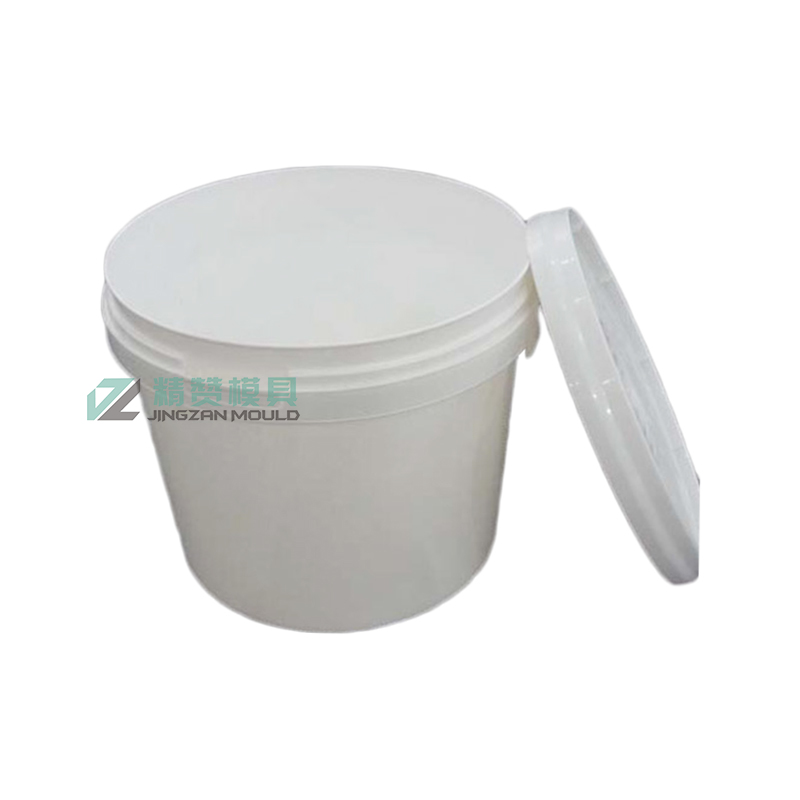

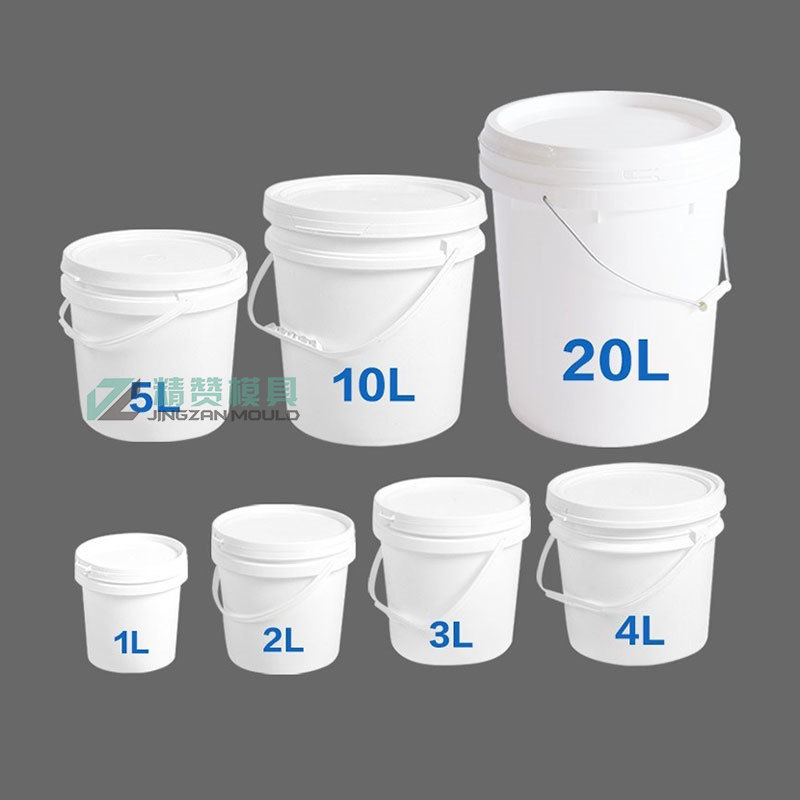

In terms of paint bucket specifications, we have made molds with handles from 500ml to 20L, such as 500ml, 1L, 1 gallon, 5L, 10L, 15L, 20L, etc. The barrel and the lid are generally hot runners, and the handle mold can be a cold runner, which saves costs. The hot runners can be Chinese brands or international brands, such as YUDO. For the barrel lid mold, we will put the injection gate on the inside to make the surface smoother and facilitate the filming.

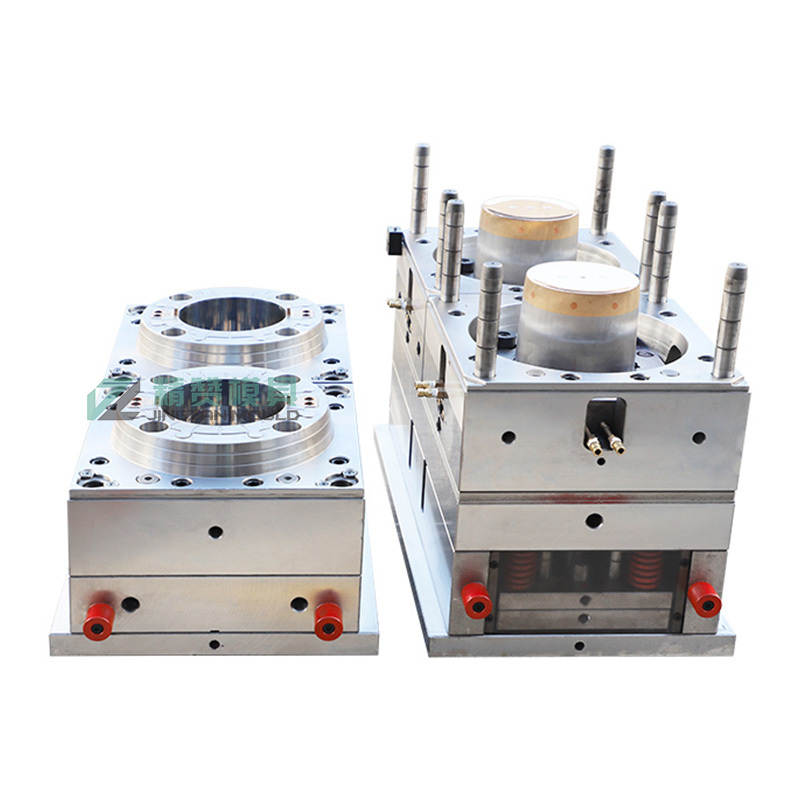

The barrel and lid can be 1 out of 1, and the handle can be 1 out of 4. For barrels less than 1 gallon, it can be 1 out of 2 chambers, and the lid can be 1 out of 4.

The choice of mold steel, P20, 718, H13 and 2344 are widely used. Different requirements, different steel.

We support different tests based on different project requirements, basic paint bucket tests include:
Stacking: 5 barrels can be stacked without deformation and breakage. Conical barrels are easy to stack and remove, and the height should be based on the design requirements.
Weight: Total weight within tolerance
Leak-proof: Turn the bucket upside down for 24 hours to check for leaks.

If you want to make any paint bucket in China, if you want to find a high quality mold supplier, please don't hesitate to contact me right away.


product name

paint bucket mold


Jing Zan Mould


Can be customized mold, no specific model



Quality Control

Supports original parts standards

Product Range

paint bucket

surface treatment

Mirror Polish/Skin Texture

Material temperature range

Determine the temperature range according to the characteristics of different products


High precision, complex structure, long service life, safety, easy operation and easy maintenance

Forming method

injection molding

Process combination

Combined with product process requirements, a set of specific product structural parts is composed of male and female molds, and plastic products are made by injection-cooling-molding process

Plastic material


payment terms

A 40% deposit is required to start construction, and 60% of the balance is paid after the mold is accepted.

Minimum order quantity


Supply capacity

Has a full line of mold production lines, with the processing ability to fully meet customer orders

Applicable machines

Conventional injection equipment

Sample delivery time

According to the project processing progress

order process

1. Sign the cooperation intention. 2. Mold design. 3. Mold making. 4. Mold inspection and mold trial. 5. Mold transportation.

After-sales service

7X24 hours online service, patiently and meticulously answer all your questions.

  • 5,000 m²
    Factory Covered
  • 15+
    Industry Experience
  • 20+
    Countries Served
  • 80+

Taizhou Huangyan Jingzan Mould Co., Ltd.

Jingzan Mould is located in Huangyan, Taizhou, the capital of commerce and trade on the east coast of Zhejiang, China. It is a modern emerging city and is known as the "hometown of plastic moulds". It is 30 minutes' drive from Taizhou Airport in the south and 10 minutes' drive from Taizhou Railway Station in the north. Self-driving, the traffic is very convenient.

As Plastic Paint bucket mold Manufacturers and Factory, the company also make moulds for household items, storage boxes, turnover boxes, chairs, stools, trash cans, trays and other daily necessities, and our Plastic Paint bucket mold exported to Europe, America, Middle East, Southeast Asia and other countries. It has advanced high-speed milling CAD/CAM machining centers, high-speed fine carving, EDM, deep hole drilling, injection molding machines and other equipment, and has a team of engineers with rich design, development and technical practical experience, offer Paint bucket mold Manufacturing & Design.

Known for our attention to detail, excellence in quality and service, we will serve you wholeheartedly for a better future.

Take A Factory Tour   >>

Convenient And Simple Customization Process

  • 1
    Provide Drawings Or Samples

    Turn your concept into drawings or samples according to your needs, show our designs to customers more intuitively, and make the service more intimate.

  • 2
    Confirm Drawings & Quotations

    Check and test mold designs and confirm all specifications (modified or unmodified) and associated pricing prior to mass production.

  • 3
    Making Samples & Mass Production

    We will use 3d printing technology to make the sample real sample and send it to the customer for confirmation, and produce the mold after getting the customer's confirmation and order.

  • 4
    Inspection & Shipping

    We will inspect the mold by our inspector, when the inspection result is qualified, we will send the mold to the customer.
