Coke crate/beer crate mould

Detailed Description

Our company produces beer bottle, cola bottle turnover box molds, and provides customers with molding solutions for bottle turnover boxes!

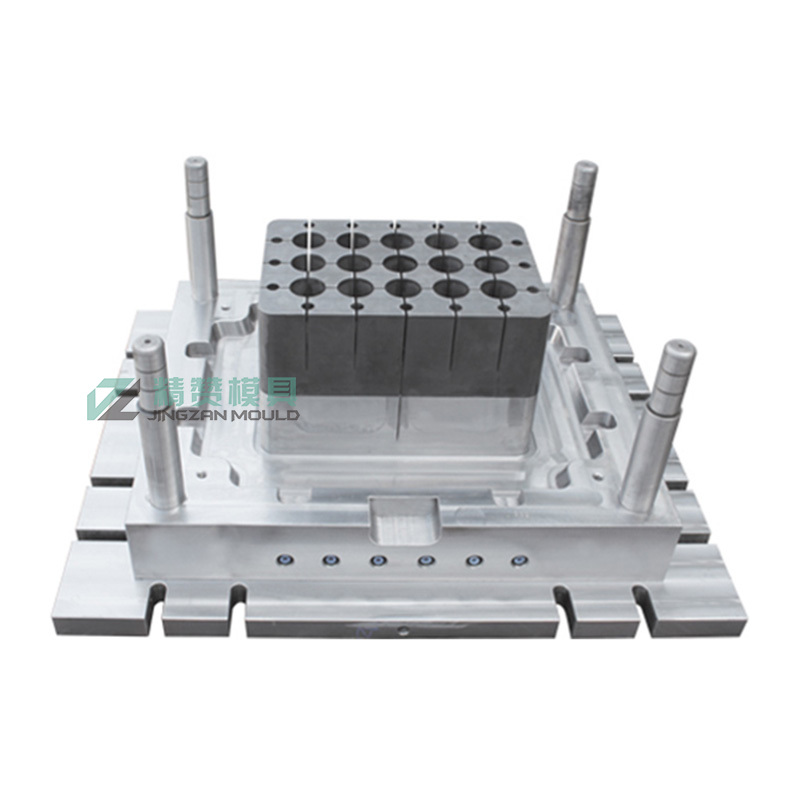

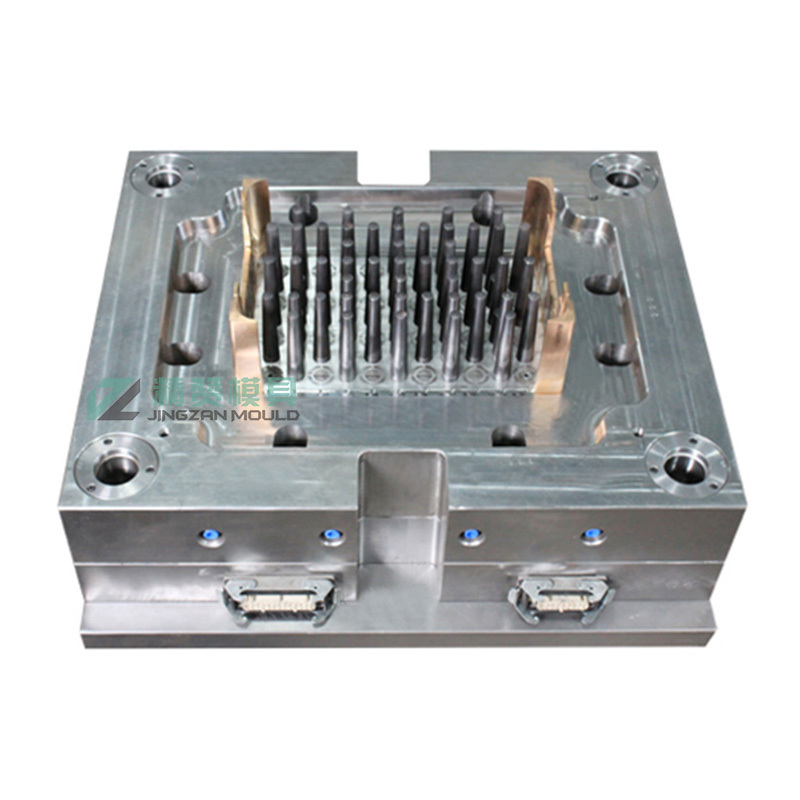

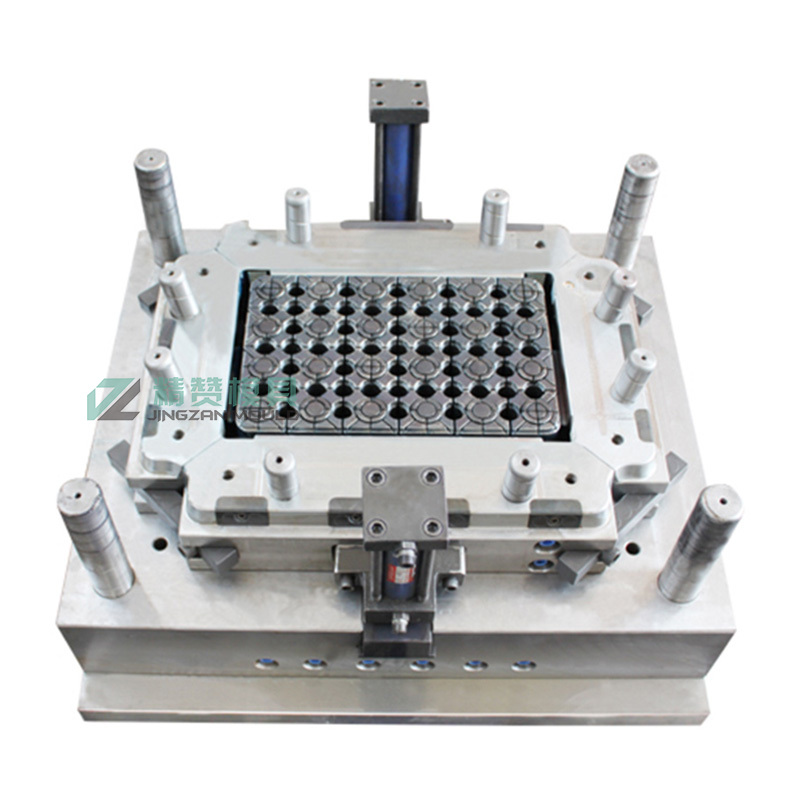

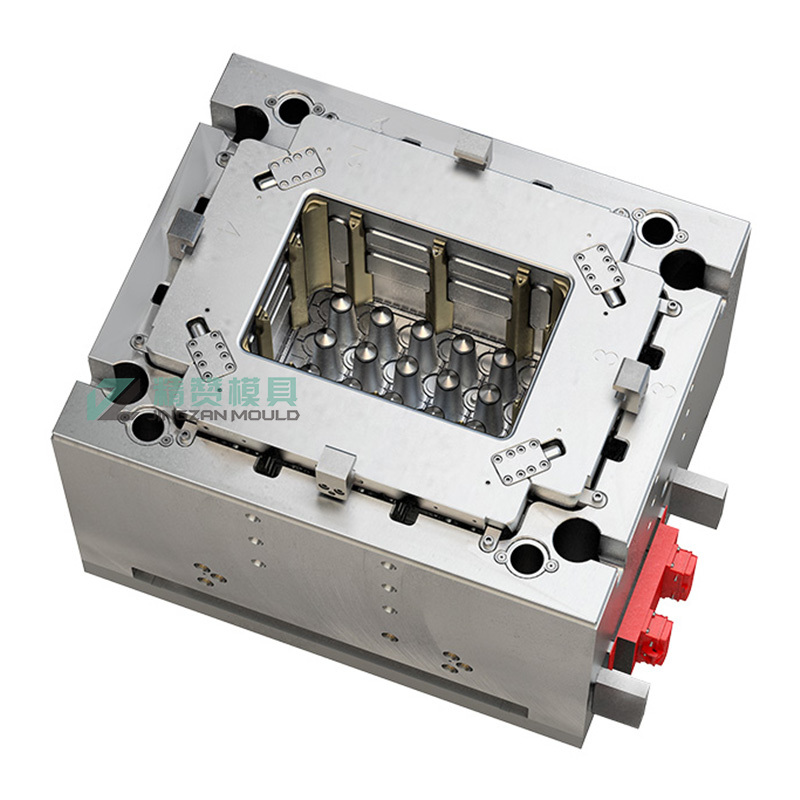

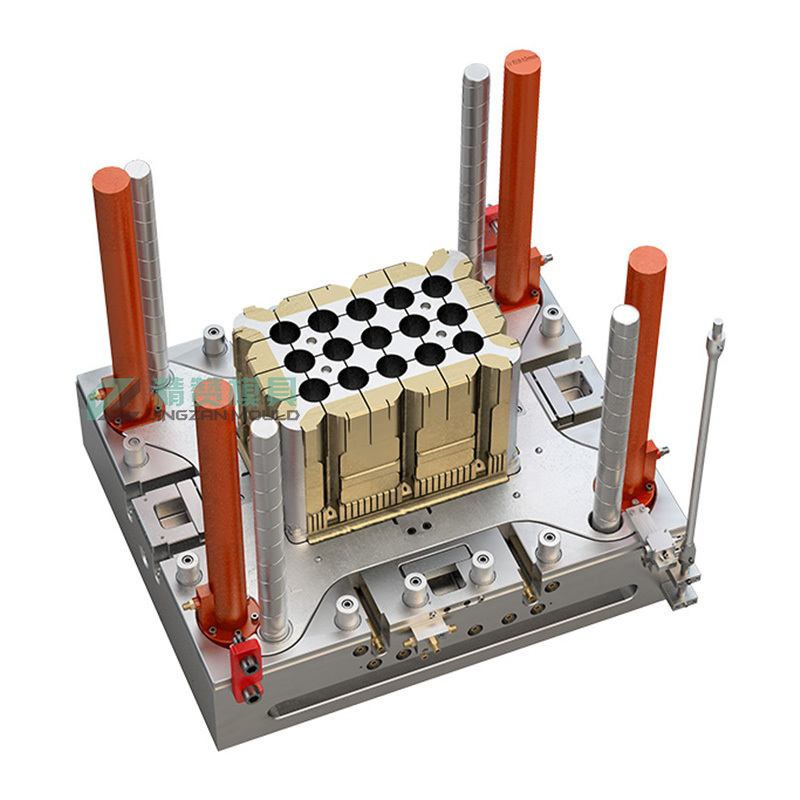

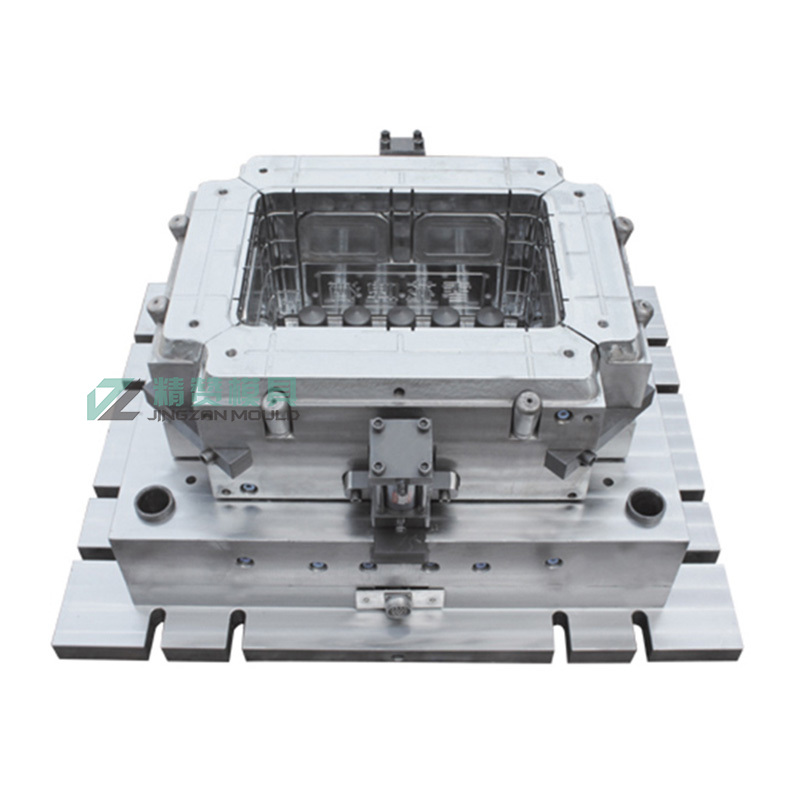

The latest cola box mold design: the cavity has four sliders, and the corners of the sliders are simultaneously driven by connecting rods, and the core part has four inclined tops and push plates, which can make the product fall off automatically. In order to improve higher efficiency, we use (beryllium bronze) material for the lifter and the bottom of the cavity, which greatly reduces the forming cycle of the product. For this type of Coke case, the cycle reaches 38 seconds per die. And we can do (one out of two).

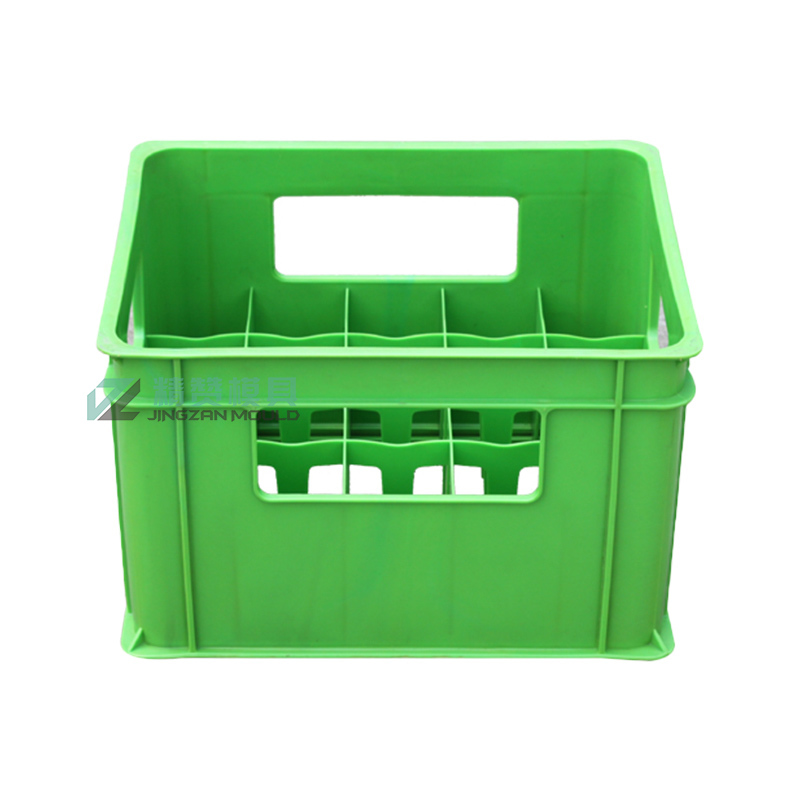

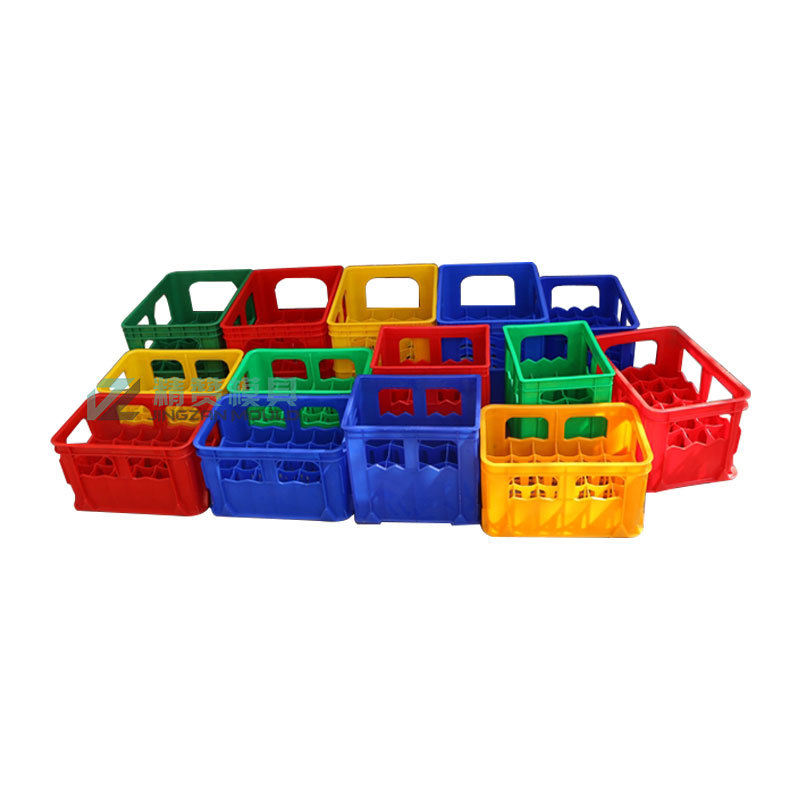

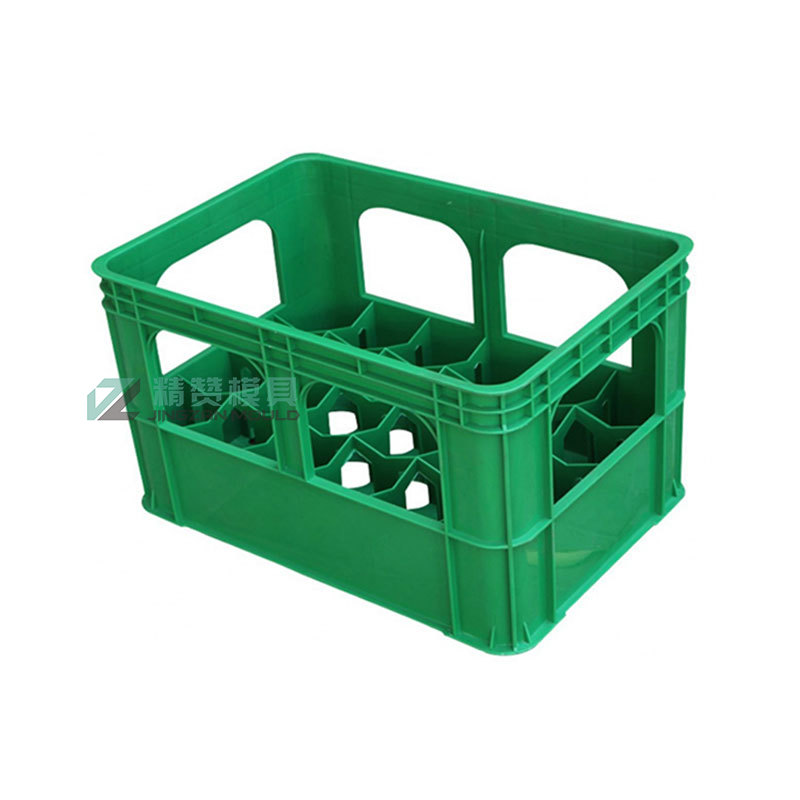

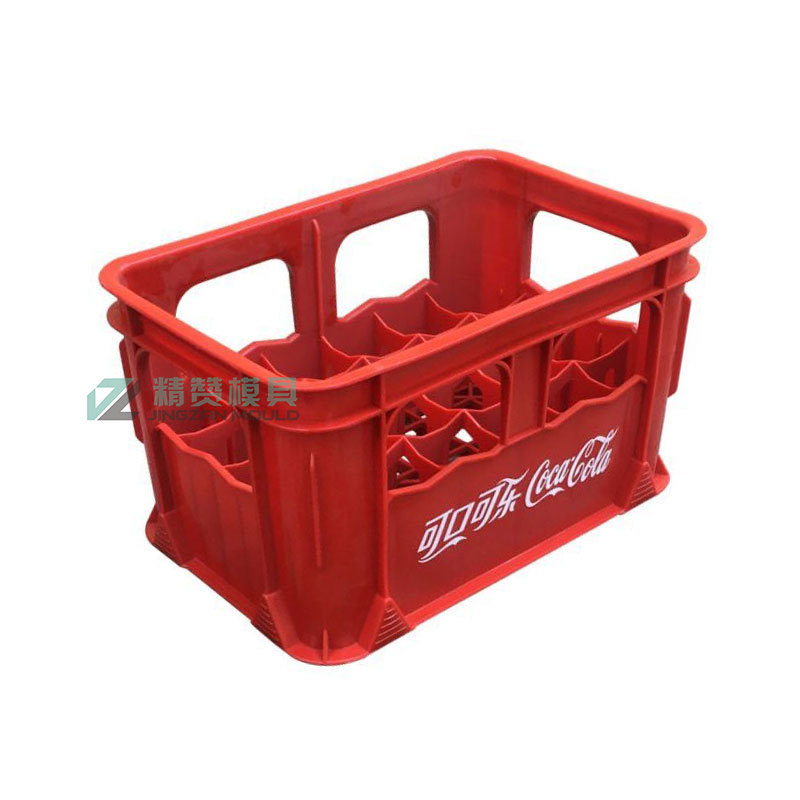

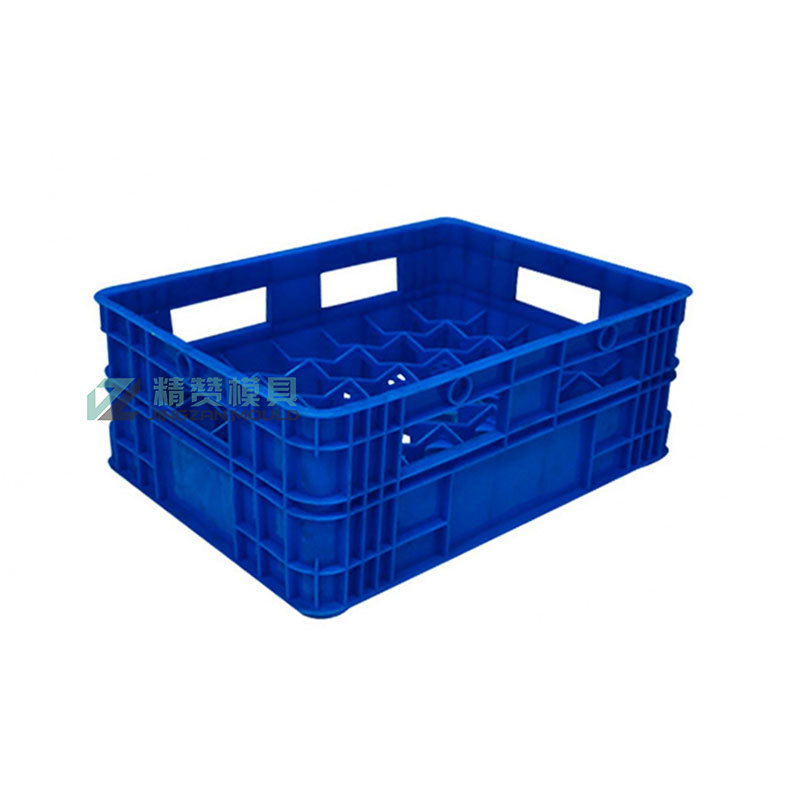

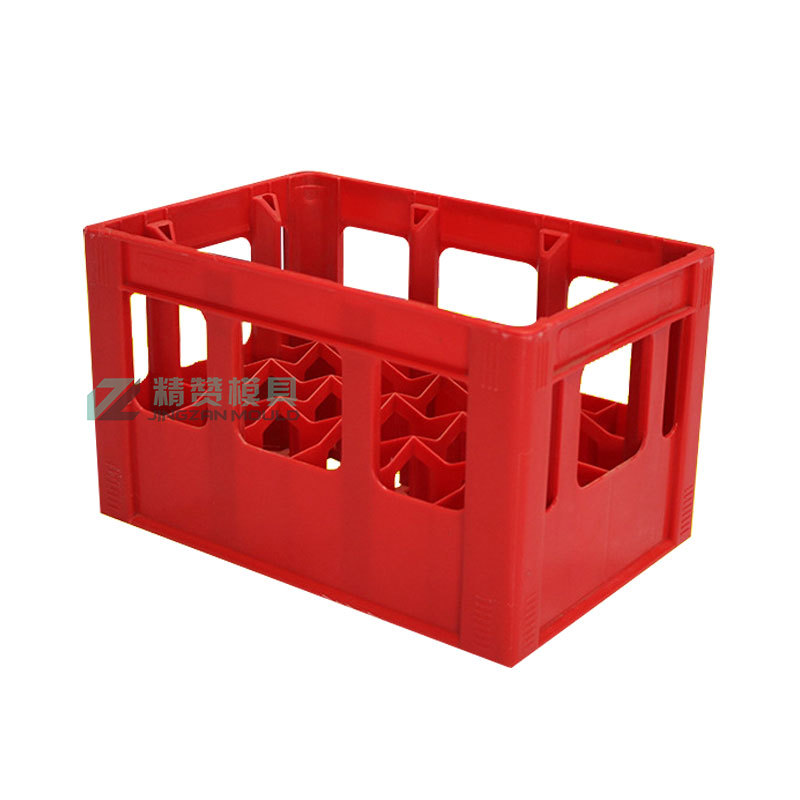

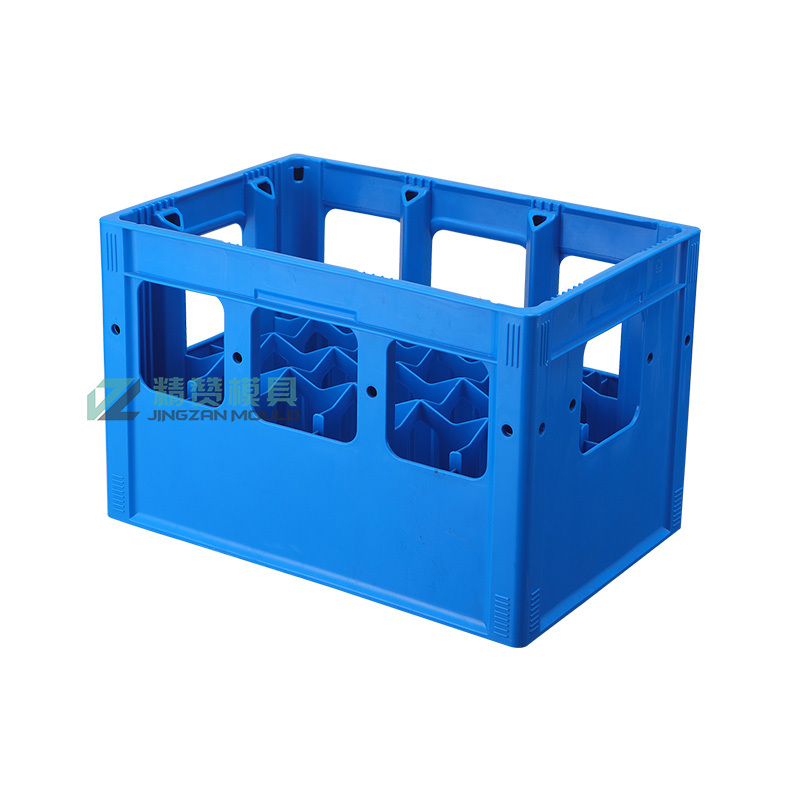

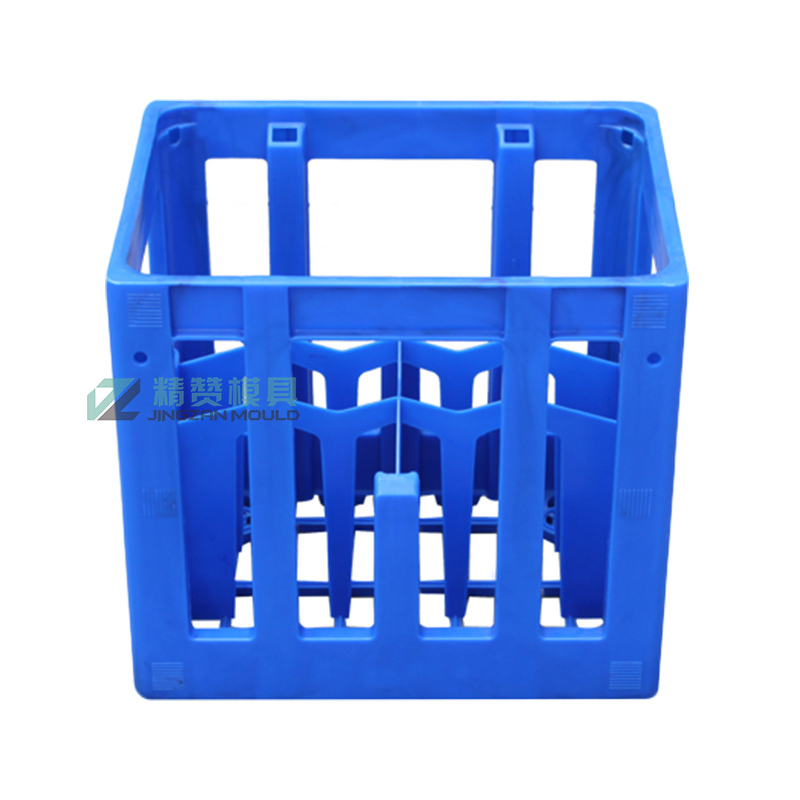

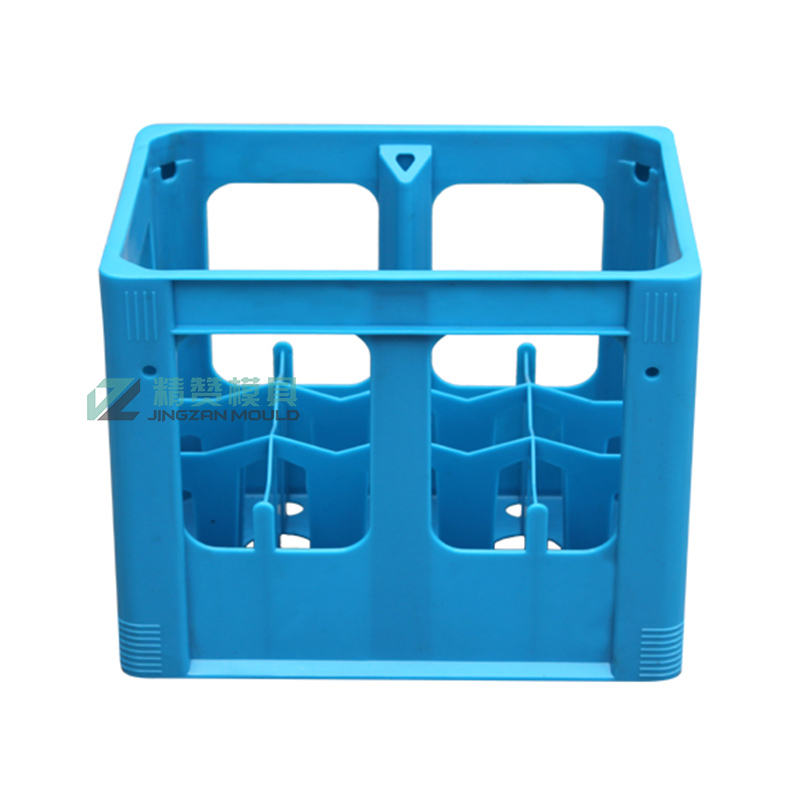

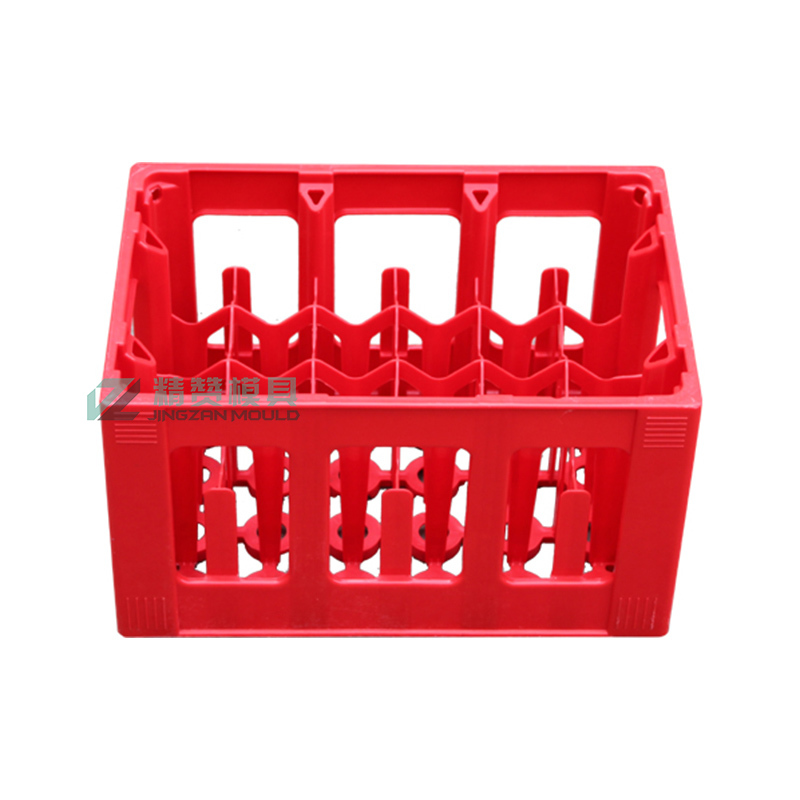

The Coke case is a popular design that protects the glass bottle from the shock of the truck and the collision of the Coke bottles.

Each pair of molds is divided into male mold and female mold for independent clamping to ensure mold concentricity.
The material is generally P20, 718, NAK80, S136, etc.
Reasonable cooling water channel design, inlaid with beryllium copper, strengthens the cooling effect of the mold and effectively shortens the injection molding cycle.

Specification

product name	Coke case/beer case mold
brand	Jing Zan Mould
Specifications/Models	Can be customized mold, no specific model
Material	NAK80/718H/2738/P20
Quality Control	Supports original parts standards
Product Range	Logistics and transportation
surface treatment	Mirror Polish/Skin Texture
Material temperature range	Determine the temperature range according to the characteristics of different products
feature	High precision, complex structure, long service life, safety, easy operation and easy maintenance
Forming method	injection molding
Process combination	Combined with product process requirements, a set of specific product structural parts is composed of male and female molds, and plastic products are made by injection-cooling-molding process
Plastic material	HDPE
payment terms	A 40% deposit is required to start construction, and 60% of the balance is paid after the mold is accepted.
Minimum order quantity	unlimited
Supply capacity	Has a full line of mold production lines, with the processing ability to fully meet customer orders
Applicable machines	Conventional injection equipment
Sample delivery time	According to the project processing progress
order process	1. Sign the cooperation intention. 2. Mold design. 3. Mold making. 4. Mold inspection and mold trial. 5. Mold transportation.
After-sales service	7X24 hours online service, patiently and meticulously answer all your questions.

5,000 m²
Factory Covered
15+
Industry Experience
20+
Countries Served
80+
Employee

Taizhou Huangyan Jingzan Mould Co., Ltd.

Jingzan Mould is located in Huangyan, Taizhou, the capital of commerce and trade on the east coast of Zhejiang, China. It is a modern emerging city and is known as the "hometown of plastic moulds". It is 30 minutes' drive from Taizhou Airport in the south and 10 minutes' drive from Taizhou Railway Station in the north. Self-driving, the traffic is very convenient.

As Plastic Coke crate/beer crate mould Manufacturers and Factory, the company also make moulds for household items, storage boxes, turnover boxes, chairs, stools, trash cans, trays and other daily necessities, and our Plastic Coke crate/beer crate mould exported to Europe, America, Middle East, Southeast Asia and other countries. It has advanced high-speed milling CAD/CAM machining centers, high-speed fine carving, EDM, deep hole drilling, injection molding machines and other equipment, and has a team of engineers with rich design, development and technical practical experience, offer Coke crate/beer crate mould Manufacturing & Design.

Known for our attention to detail, excellence in quality and service, we will serve you wholeheartedly for a better future.
