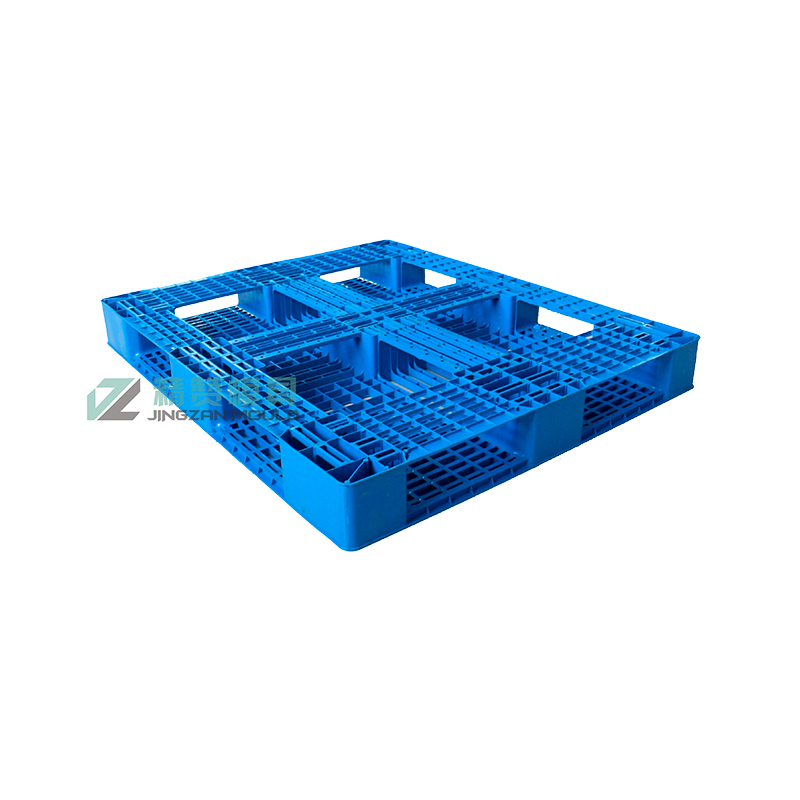

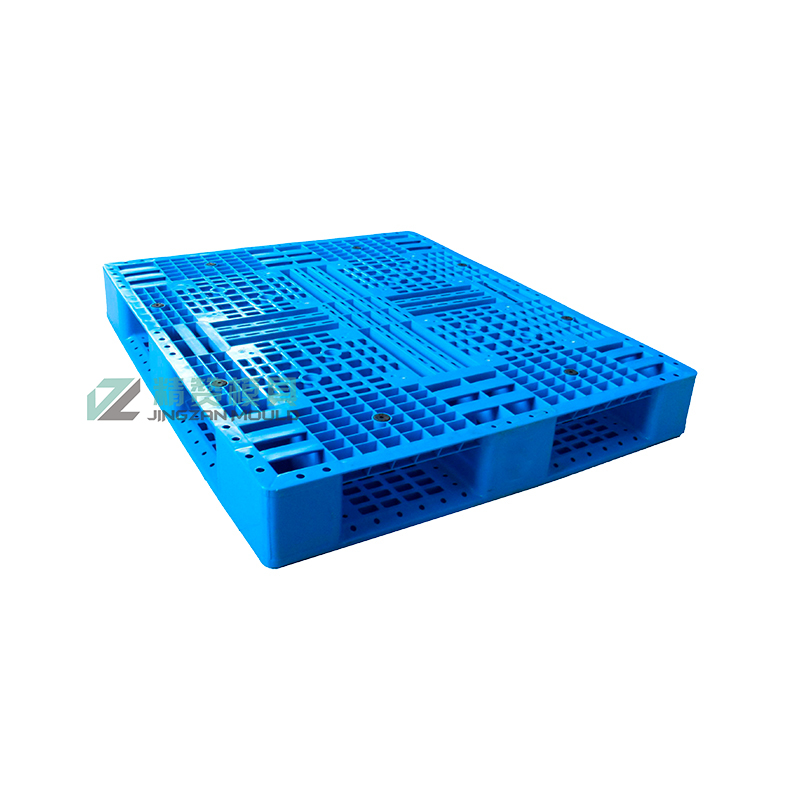

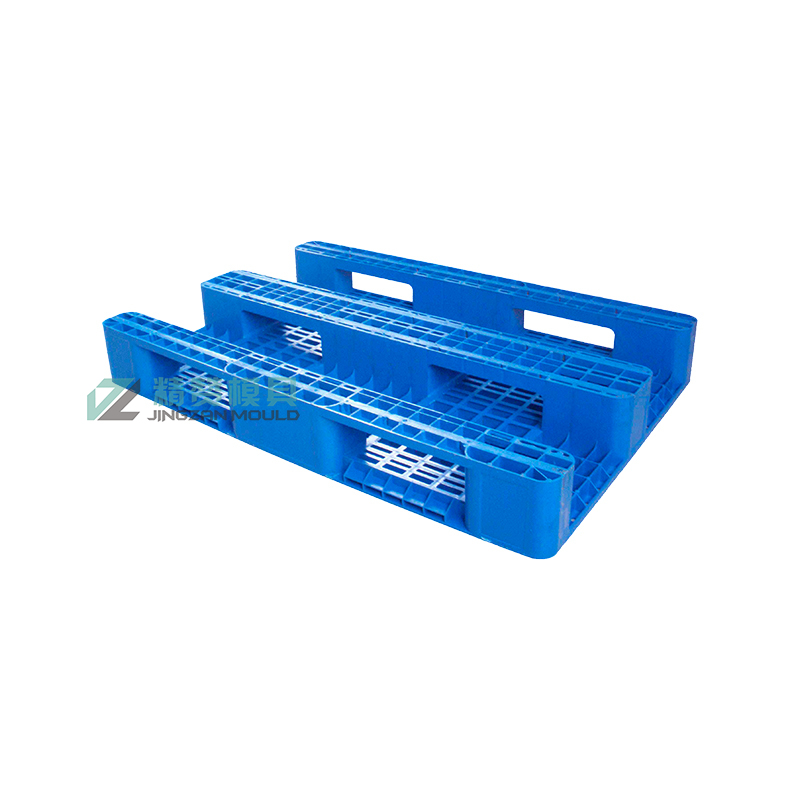

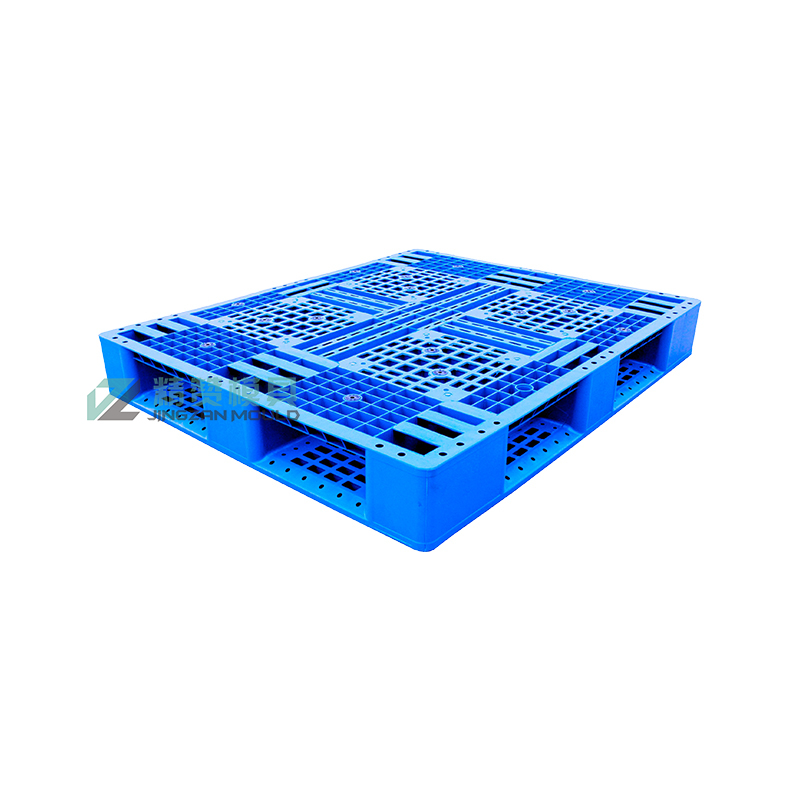

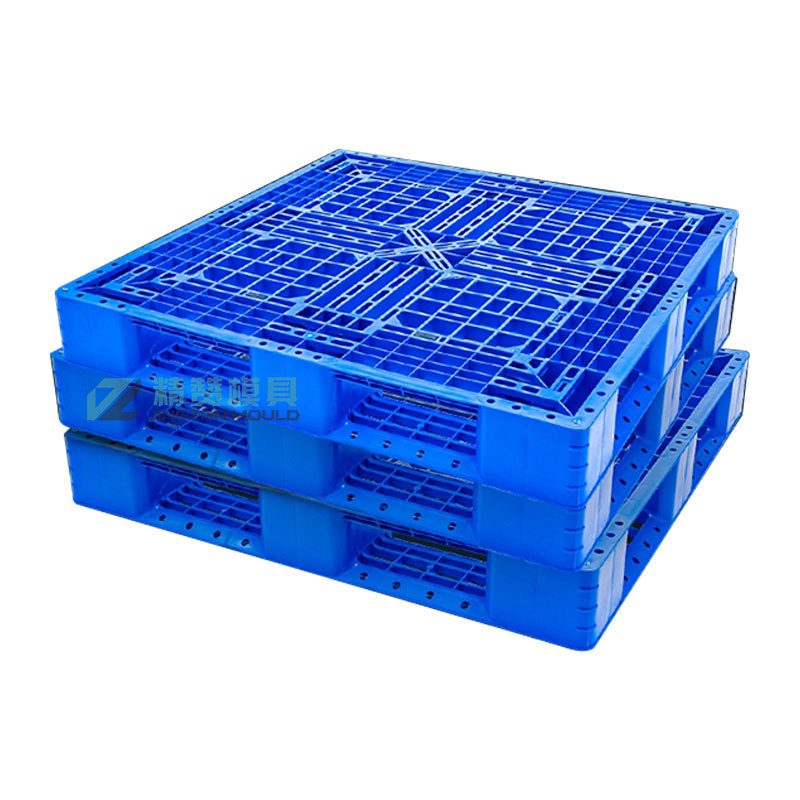

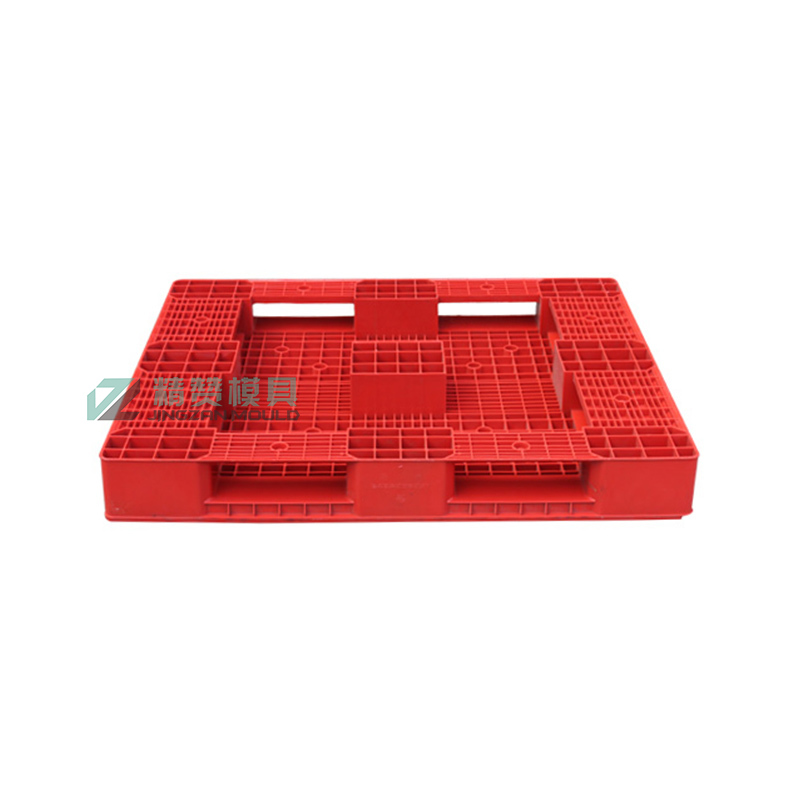

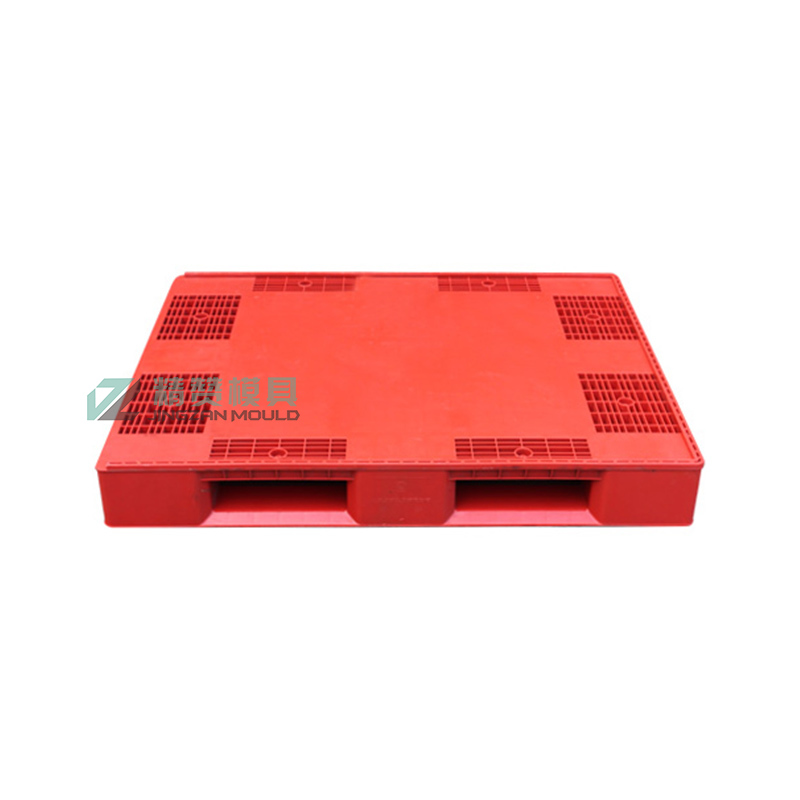

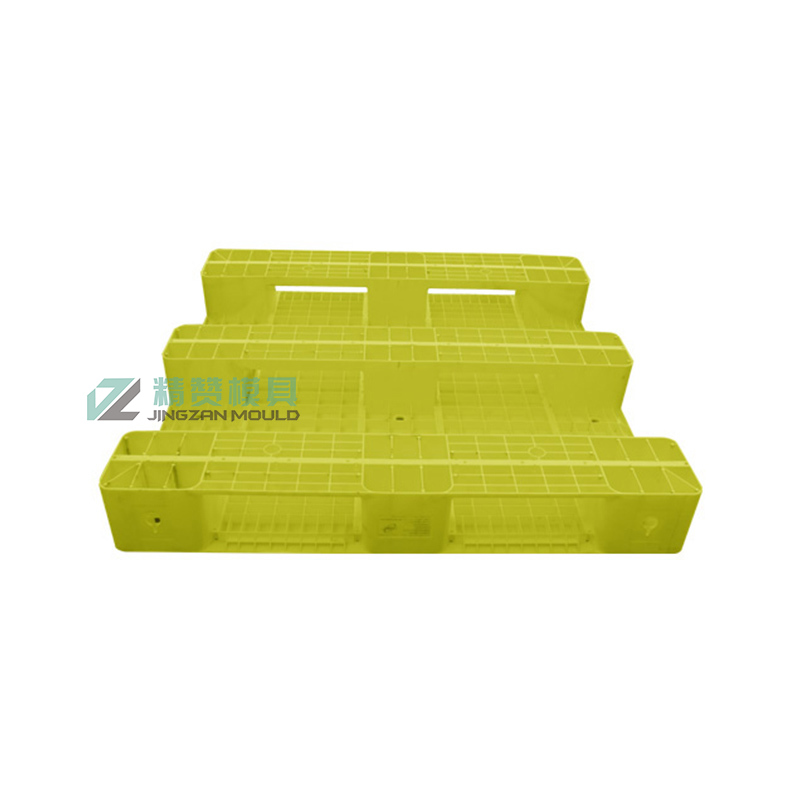

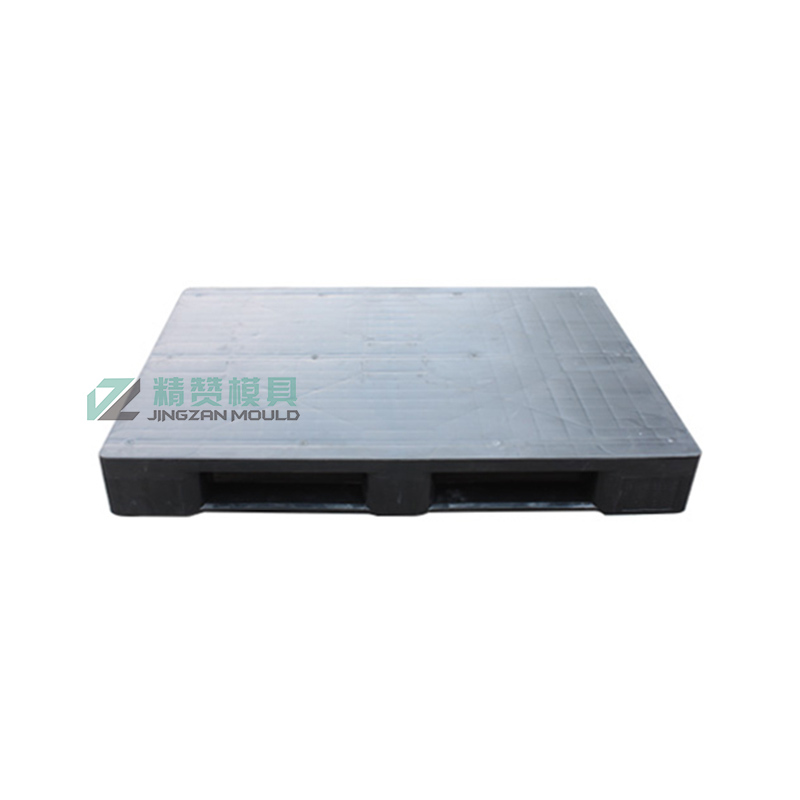

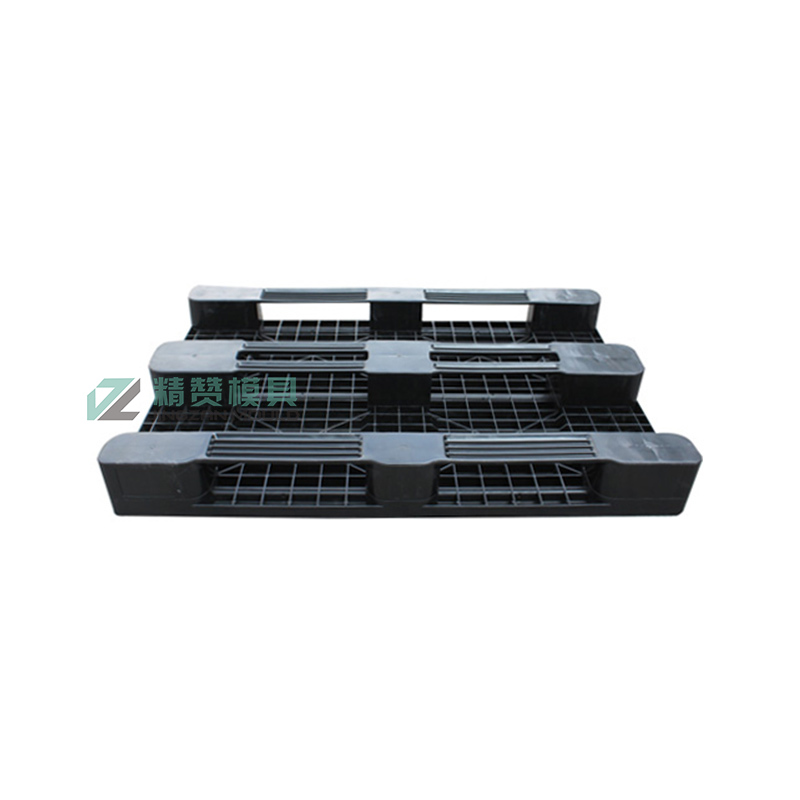

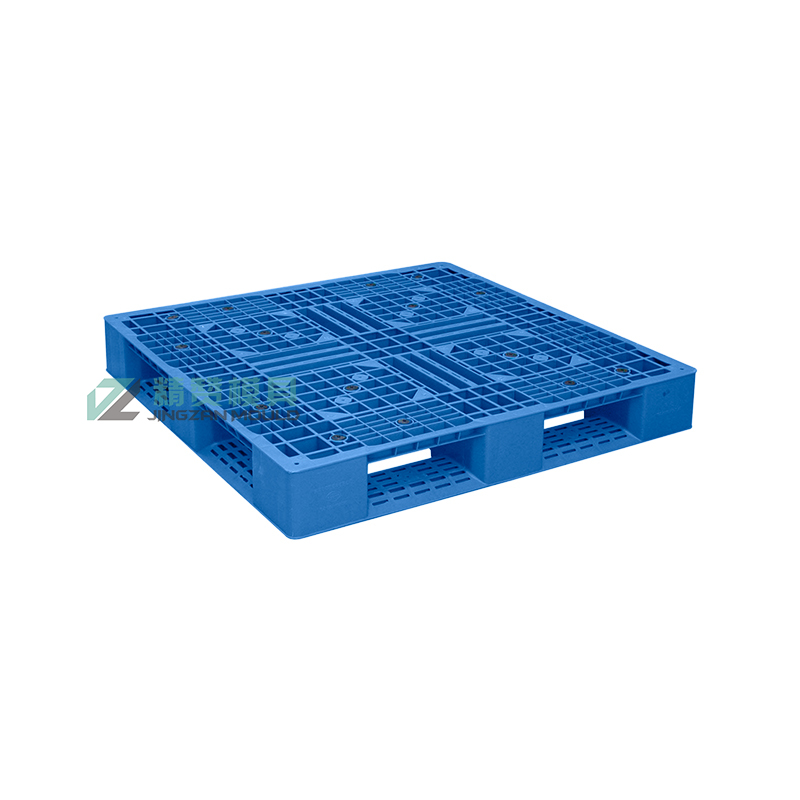

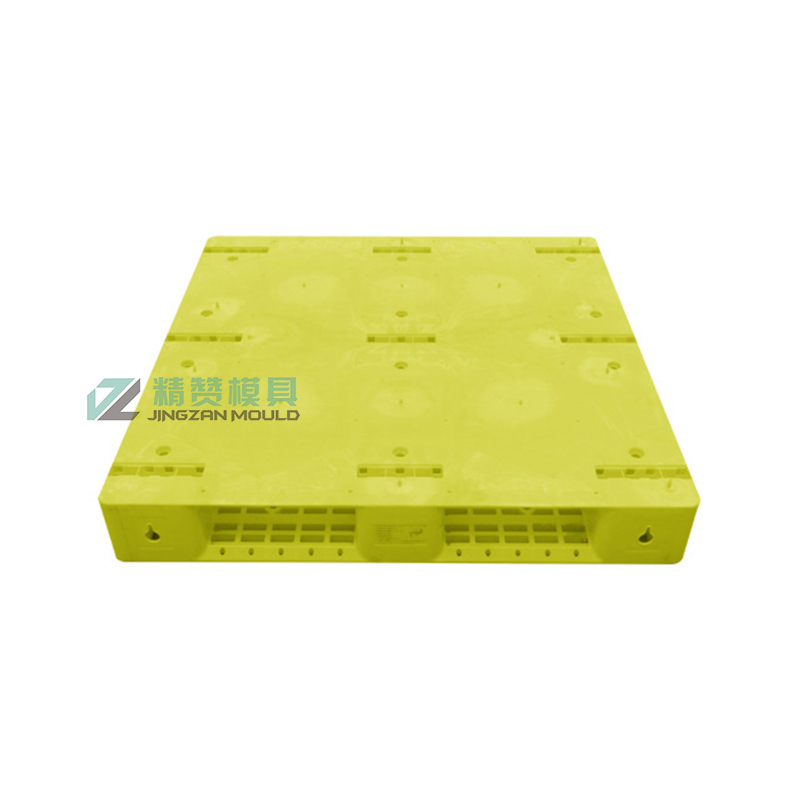

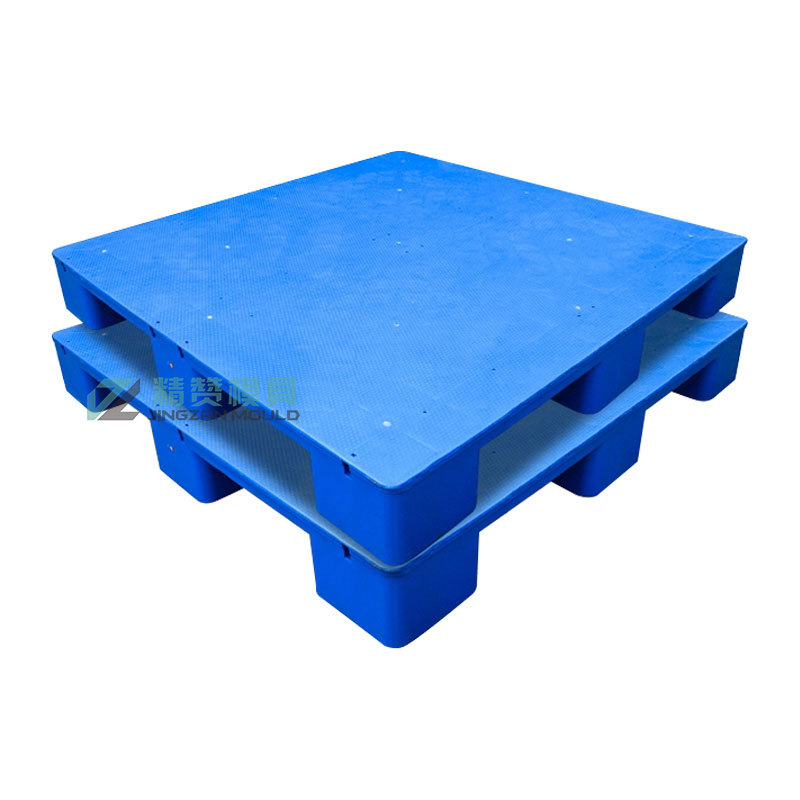

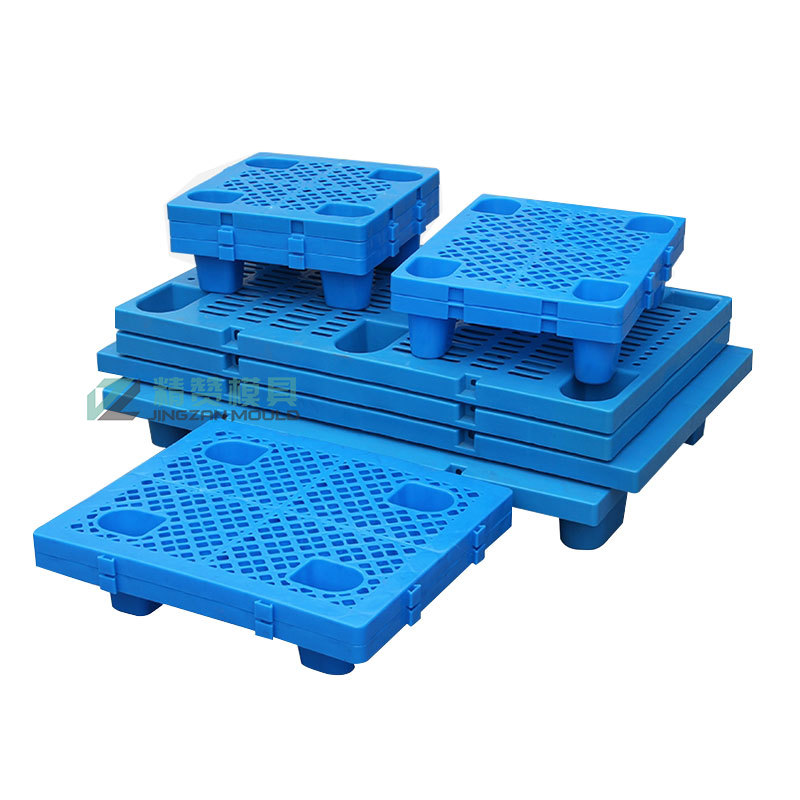

Tray mould

Detailed Description

Jingzan Mould has rich experience in the manufacture of large-scale tray moulds, and the quality is reliable. We have a professional design and assembly team, and it is our goal to provide customers with high-quality molds.

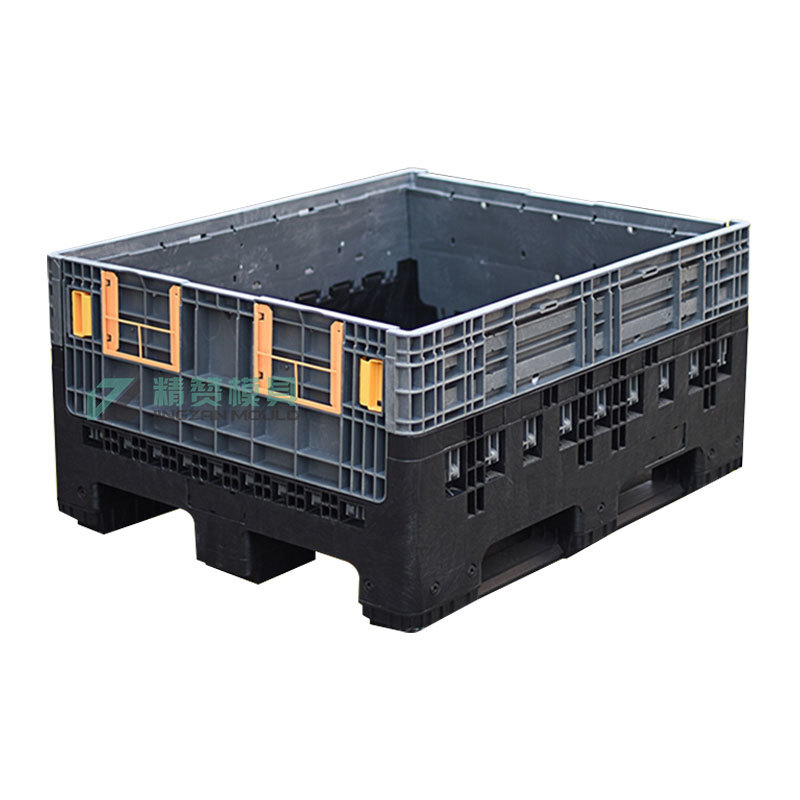

We manufacture all kinds of large molds, such as trash can molds, industrial molds. Pallet boxes, pallet logistics molds, not all factories can manufacture. Because these products are relatively large and require a certain amount of technology.

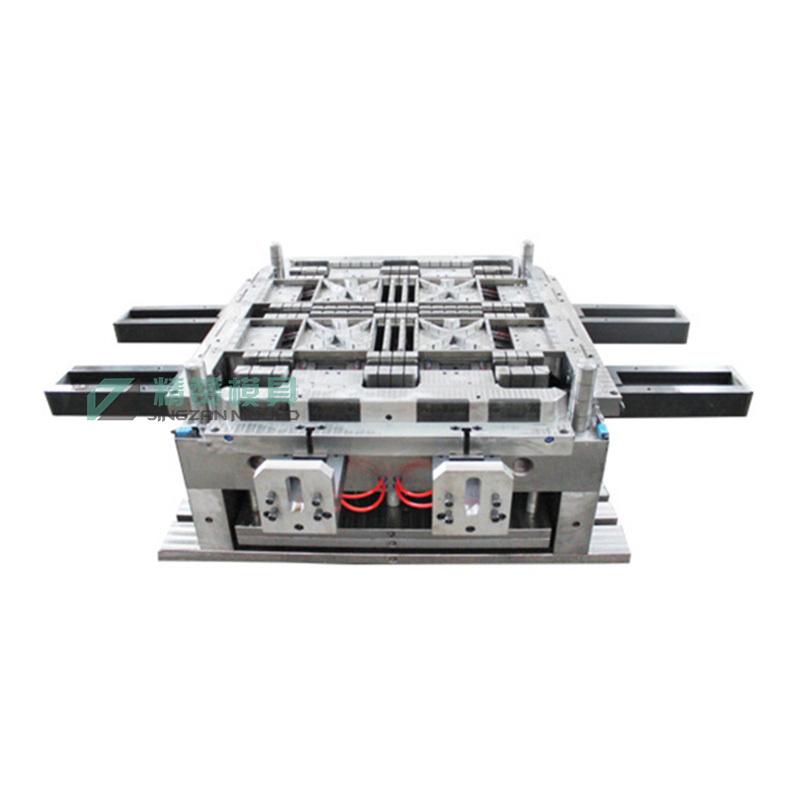

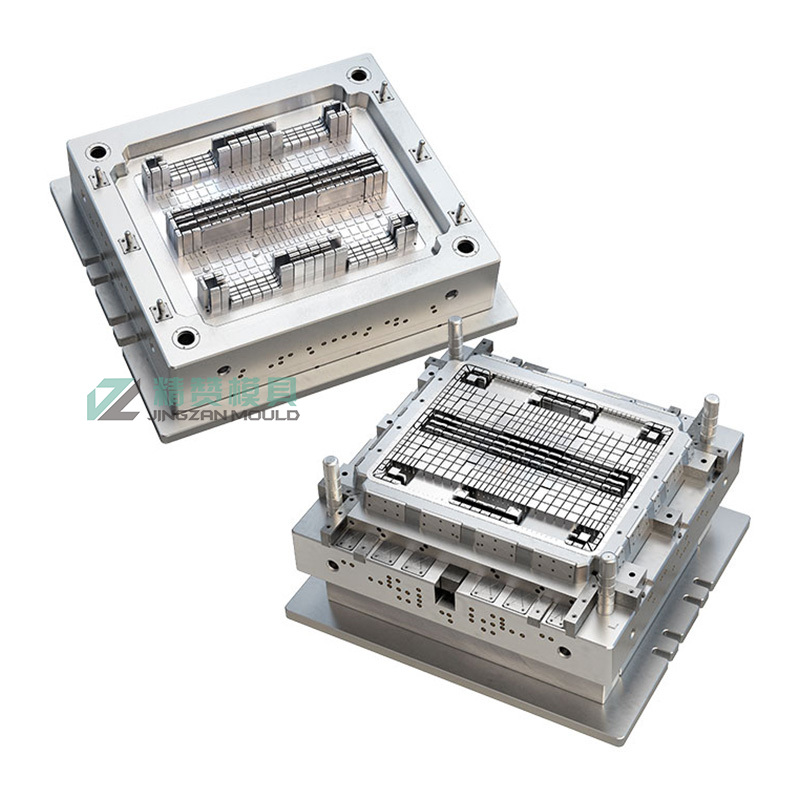

In general, for example, the plastic tray mold adopts the I-die structure, the cavity and core are P20 or 2738, the slider, guide chute, and insert are 2316 or 718, and the guide post, guide sleeve, gate sleeve, pull material The rod and reset rod adopt SKD standard parts.

There are four common methods for making trays: 1. Injection molding; 2. Blow molding; 3. Vacuum forming; 4. Extrusion.

We are very good at making plastic pallet moulds for injection moulding.

Maintenance of the tray mold: 1. After the mold is installed, open the mold and clean all parts of the mold, especially the guide mechanism. For the surface part mold, the surface should be cleaned to ensure the quality of the parts; 2 pairs The sliding parts of the mold are lubricated and greased; 3. Inspection of all parts of the mold, especially the safety parts. Such as: safety side pins, safety screws, side guards, punching waste channels, etc.

If you have any inquiries about: trash can moulds, industrial moulds, pallet box moulds, pallet logistics moulds, please contact us.

Specification

product name	Tray mold
brand	Jing Zan Mould
Specifications/Models	Can be customized mold, no specific model
Material	NAK80/718H/2738/P20
Quality Control	Supports original parts standards
Product Range	Logistics and transportation
surface treatment	Mirror Polish/Skin Texture
Material temperature range	Determine the temperature range according to the characteristics of different products
feature	High precision, complex structure, long service life, safety, easy operation and easy maintenance
Forming method	injection molding
Process combination	Combined with product process requirements, a set of specific product structural parts is composed of male and female molds, and plastic products are made by injection-cooling-molding process
Plastic material	HDPE
payment terms	A 40% deposit is required to start construction, and 60% of the balance is paid after the mold is accepted.
Minimum order quantity	unlimited
Supply capacity	Has a full line of mold production lines, with the processing ability to fully meet customer orders
Applicable machines	Conventional injection equipment
Sample delivery time	According to the project processing progress
order process	1. Sign the cooperation intention. 2. Mold design. 3. Mold making. 4. Mold inspection and mold trial. 5. Mold transportation.
After-sales service	7X24 hours online service, patiently and meticulously answer all your questions.

5,000 m²
Factory Covered
15+
Industry Experience
20+
Countries Served
80+
Employee

Taizhou Huangyan Jingzan Mould Co., Ltd.

Jingzan Mould is located in Huangyan, Taizhou, the capital of commerce and trade on the east coast of Zhejiang, China. It is a modern emerging city and is known as the "hometown of plastic moulds". It is 30 minutes' drive from Taizhou Airport in the south and 10 minutes' drive from Taizhou Railway Station in the north. Self-driving, the traffic is very convenient.

As Plastic Tray mould Manufacturers and Factory, the company also make moulds for household items, storage boxes, turnover boxes, chairs, stools, trash cans, trays and other daily necessities, and our Plastic Tray mould exported to Europe, America, Middle East, Southeast Asia and other countries. It has advanced high-speed milling CAD/CAM machining centers, high-speed fine carving, EDM, deep hole drilling, injection molding machines and other equipment, and has a team of engineers with rich design, development and technical practical experience, offer Tray mould Manufacturing & Design.

Known for our attention to detail, excellence in quality and service, we will serve you wholeheartedly for a better future.

Take A Factory Tour >>

Convenient And Simple Customization Process

1

Provide Drawings Or Samples

Turn your concept into drawings or samples according to your needs, show our designs to customers more intuitively, and make the service more intimate.
2

Confirm Drawings & Quotations

Check and test mold designs and confirm all specifications (modified or unmodified) and associated pricing prior to mass production.
3

Making Samples & Mass Production

We will use 3d printing technology to make the sample real sample and send it to the customer for confirmation, and produce the mold after getting the customer's confirmation and order.
4

Inspection & Shipping

We will inspect the mold by our inspector, when the inspection result is qualified, we will send the mold to the customer.
