Washing machine mould Manufacturing & Design Custom

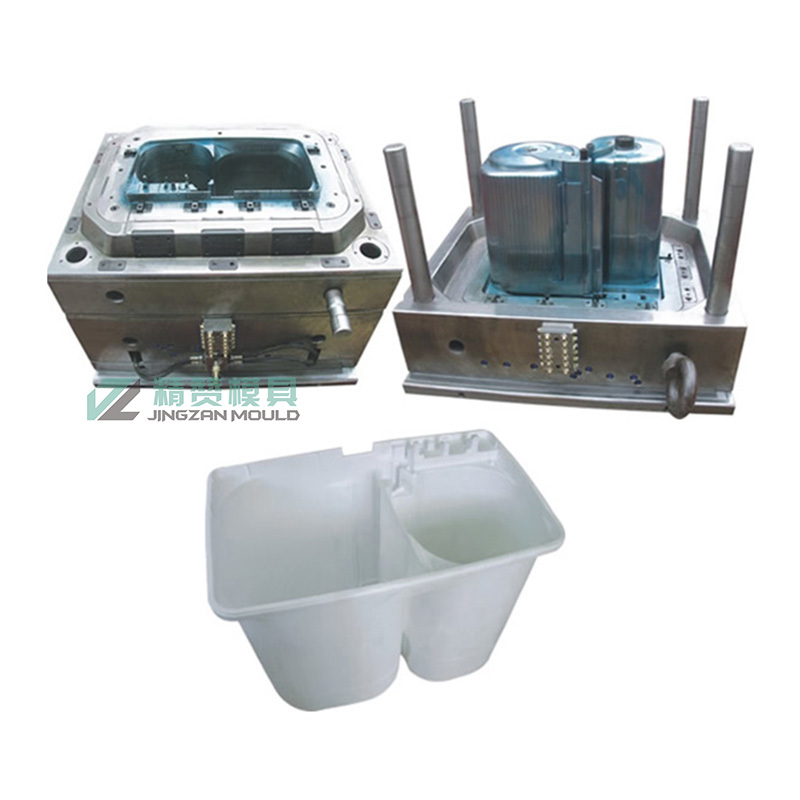

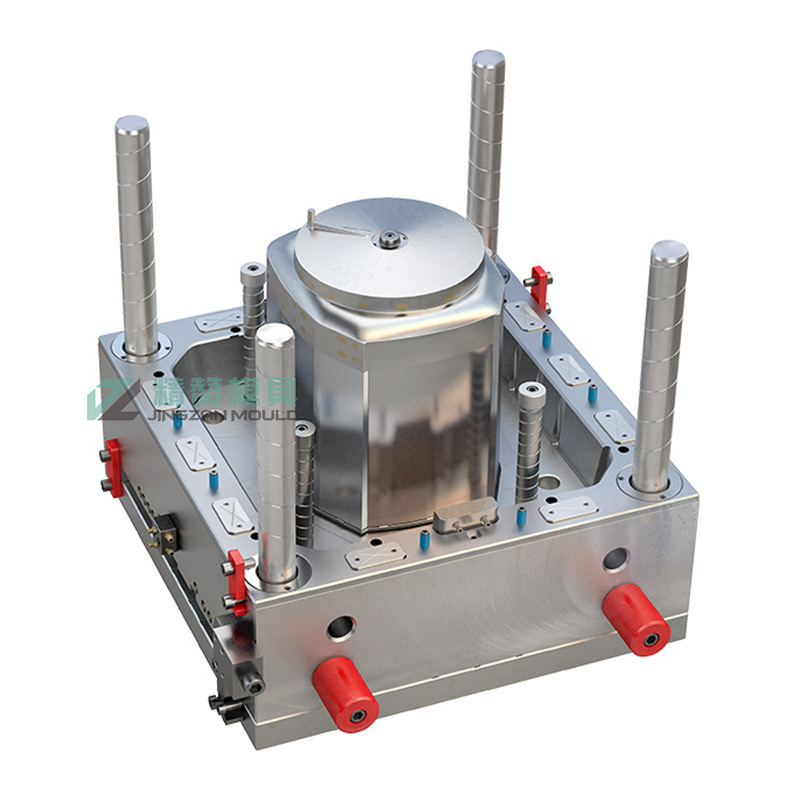

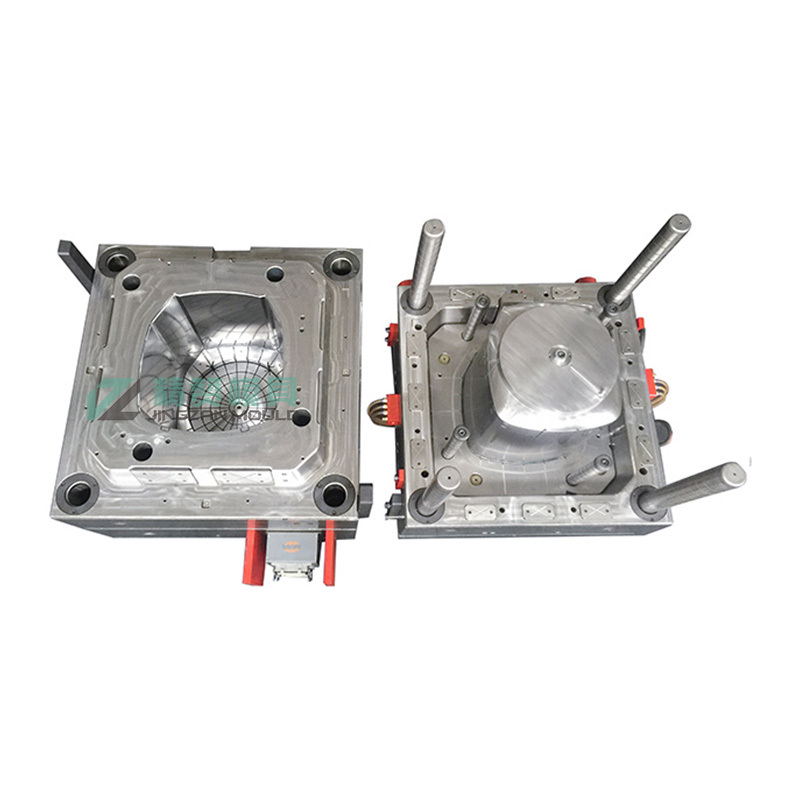

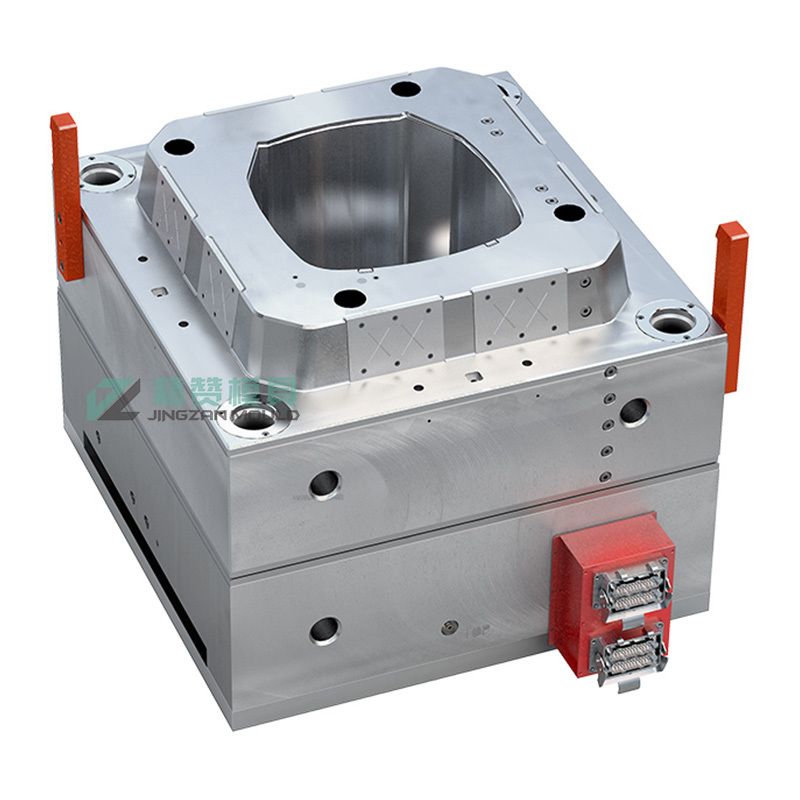

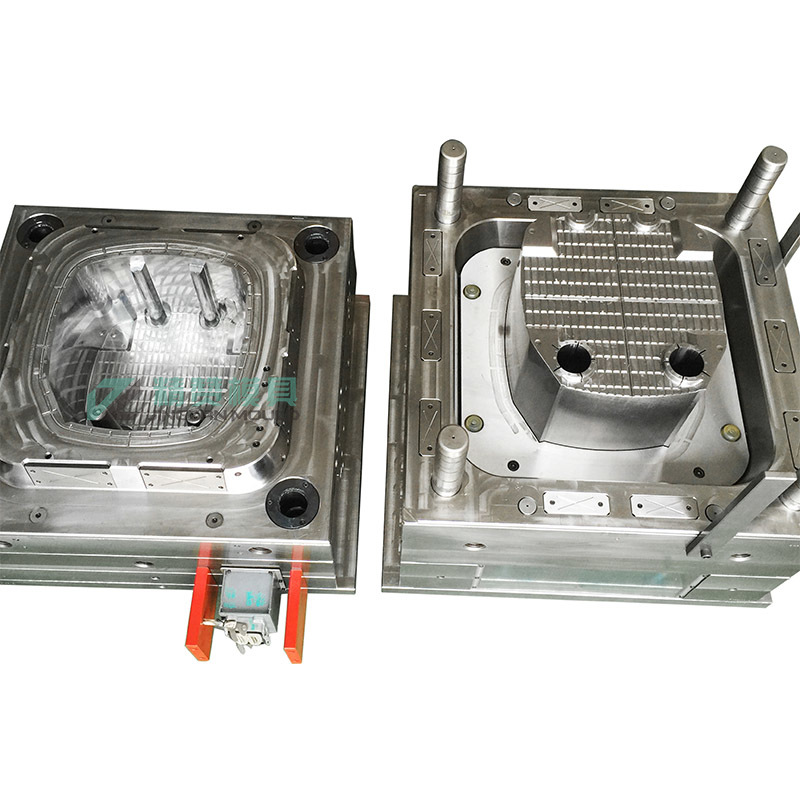

Washing machine mould

Detailed Description

We have the advantages of good quality and reasonable price. We can customize various washing machine molds for each customer according to customer requirements. Moulds can be made according to customer's drawings or samples.

The details of washing machine mould/washing machine mould are as follows:
Core cavity steel: P20, 718H, 2738H, H13, NAK80, 2316, etc.
Formwork and standard parts: DME, HASCO, self-made, etc.
Steel hardness: HRC33-52
Plastic material: PP, PC, PE, ABS, PVC, etc.
Number of cavities: single or according to your requirements
Injection system: side door, needle tip door
Injector System: Thimble
Runner: hot runner, cold runner
Mold lead time: 60-70 days
Mold life: 500,000-1,000,000 times

technology:
1. Mold structure design.
Professional designers provide you with properly designed molds to shorten cycle time.
Reduce unnecessary procedures and improve efficiency.
2. Mold cooling system.
According to the structural features of the product and the appearance of the product, we design a reasonable channel for the mold door, such as gate, hidden door, damper, needle door, needle point door, etc. The runner design enables the mold temperature to balance in a shorter time to improve the accuracy and productivity of the mold.
3. Mould accessories.
Sliding guide pins, guide sleeves, lifters, etc. are all wear-resistant standard parts to ensure the service life of the mold.
4. Process the mold.
Quenching the mold, heat treatment increases the hardness, then the nitriding temperature is lower, the mold no longer needs to be quenched The mold has high surface hardness and wear resistance greater than HV850

Our advantage:
1. High quality; 2. Reasonable price; 3. On-time delivery; 4. Good after-sales service; 5. Strict quality control.

We will provide you with a satisfactory mold solution, if you are looking for washing machine molds, please come to us to inquire, we will never let you down.

Specification

product name

washing machine mould

brand

Jing Zan Mould

Specifications/Models

Can be customized mold, no specific model

Material

718 / 2738 / P20

Quality Control

Supports original parts standards

Product Range

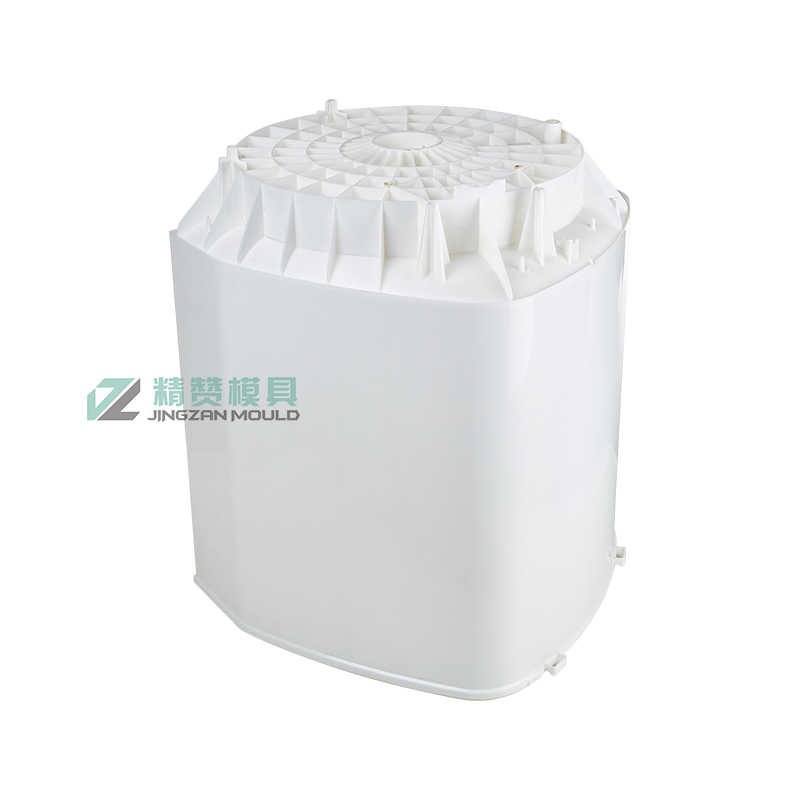

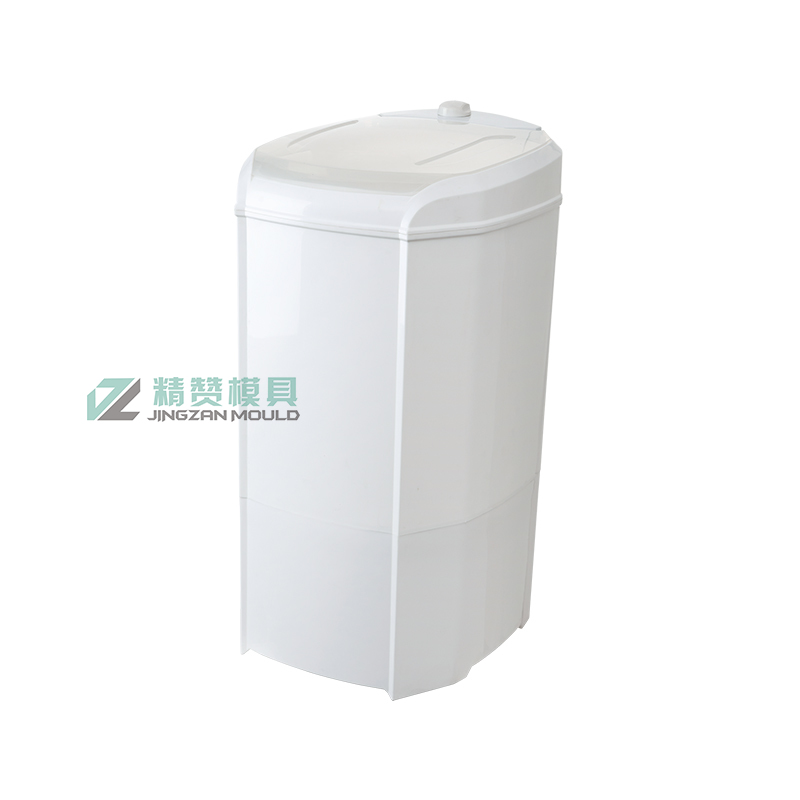

washing machine shell

surface treatment

Mirror Polish/Skin Texture

Material temperature range

Determine the temperature range according to the characteristics of different products

feature

High precision, complex structure, long service life, safety, easy operation and easy maintenance

Forming method

injection molding

Process combination

Combined with product process requirements, a set of specific product structural parts is composed of male and female molds, and plastic products are made by injection-cooling-molding process

Plastic material

PP

payment terms

A 40% deposit is required to start construction, and 60% of the balance is paid after the mold is accepted.

Minimum order quantity

unlimited

Supply capacity

Has a full line of mold production lines, with the processing ability to fully meet customer orders

Applicable machines

Conventional injection equipment

Sample delivery time

According to the project processing progress

order process

1. Sign the cooperation intention. 2. Mold design. 3. Mold making. 4. Mold inspection and mold trial. 5. Mold transportation.

After-sales service

7X24 hours online service, patiently and meticulously answer all your questions.

  • 5,000 m²
    Factory Covered
  • 15+
    Industry Experience
  • 20+
    Countries Served
  • 80+
    Employee

Taizhou Huangyan Jingzan Mould Co., Ltd.

Jingzan Mould is located in Huangyan, Taizhou, the capital of commerce and trade on the east coast of Zhejiang, China. It is a modern emerging city and is known as the "hometown of plastic moulds". It is 30 minutes' drive from Taizhou Airport in the south and 10 minutes' drive from Taizhou Railway Station in the north. Self-driving, the traffic is very convenient.

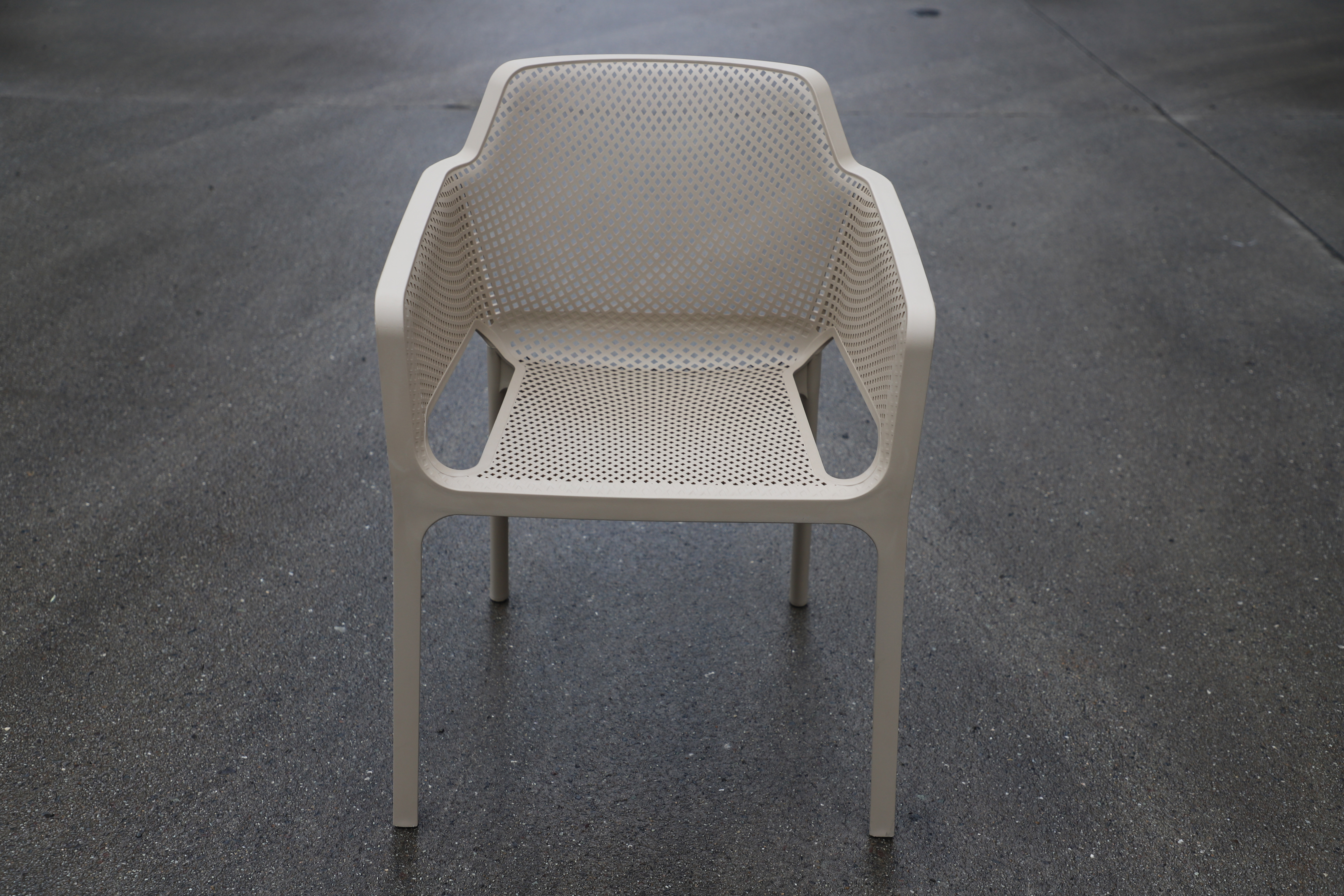

As Plastic Washing machine mould Manufacturers and Factory, the company also make moulds for household items, storage boxes, turnover boxes, chairs, stools, trash cans, trays and other daily necessities, and our Plastic Washing machine mould exported to Europe, America, Middle East, Southeast Asia and other countries. It has advanced high-speed milling CAD/CAM machining centers, high-speed fine carving, EDM, deep hole drilling, injection molding machines and other equipment, and has a team of engineers with rich design, development and technical practical experience, offer Washing machine mould Manufacturing & Design.

Known for our attention to detail, excellence in quality and service, we will serve you wholeheartedly for a better future.

Take A Factory Tour   >>

Convenient And Simple Customization Process

  • 1
    Provide Drawings Or Samples

    Turn your concept into drawings or samples according to your needs, show our designs to customers more intuitively, and make the service more intimate.

  • 2
    Confirm Drawings & Quotations

    Check and test mold designs and confirm all specifications (modified or unmodified) and associated pricing prior to mass production.

  • 3
    Making Samples & Mass Production

    We will use 3d printing technology to make the sample real sample and send it to the customer for confirmation, and produce the mold after getting the customer's confirmation and order.

  • 4
    Inspection & Shipping

    We will inspect the mold by our inspector, when the inspection result is qualified, we will send the mold to the customer.
